Technical specifications
|
Parameters
|
Range depending on the configuration
|
Typical system
|
|
Classification
to ISO 9513
|
Class 0.2, 0.5, 1, 2, -
|
Class
1
|
|
Classification
to ASTM E 83
|
Class A, B-1, B-2, C, D, E, -
|
Class
B-1
|
|
Field
of View (FOV)
|
2-2000mm Could be increased by
different optical system
|
60 mm
|
|
Gauge
Range
|
0.01-800 %
|
0.01-10 %
|
|
Resolution
|
0.1-50um Could be increased by different optical
system
|
1 um
|
|
Analog
output
|
10-16 bit
|
4V/14 bit
|
|
Digital
output
|
RS232/422/485, TCP/IP
|
TCP/IP
|
|
Camera
resolution
|
0.3-29 MPx
|
1.2 MPx
|
|
Data
rate
|
0.1-10 000 Hz
|
50 Hz
|
1、Multiple virtual extensometers per camera
input。
2、Modular concept beginning by simple camera
recorder up to multicamera 3D fullfield system with shaker。
3、Wide scope of engineering use:Material
testing,FEA validation,Component testing,Vibrography。
4、Multi-threaded parallel computation for
optimal measurement speed。
5、Enhanced graphical user Interface with
intuitive controls. Highly efficient video display using OpenGL acceleration。
6、Simple system calibration including
arbitrarily moveable coordinate system。
7、The system can also be used on natural,
non-prepared surfaces (such as wood, fabric, material structure and
roughness,...)。
8、Customizable export formats。
9、Connectivity to a large number of test
rigs types。
10、System allows to operate with DOLI based
equipments。
11、Simultaneous data recording and computing。
12、Videostroboscopic functionality
(synchronization with periodic phenomena)。
Applications
Deformation measurement of samples during material testing with
use of the Video extensometer MercuryRT allows applying multiple virtual probes
(Movement Sensors)on markers and advanced image featuresto be tracked,
including the natural pattern of the sample surfaces.The common resolution of
standard system is within 500 nm and 5 m. The system fulfils class 0.5 or B-1
of classification according to ISO 9513 and ASTM E83. In certain camera use
case, the system resolution reaches the level of 100 nm - 500 nm and system
fulfils the class 0.2. The strain resolution can reach 10 microstrains.

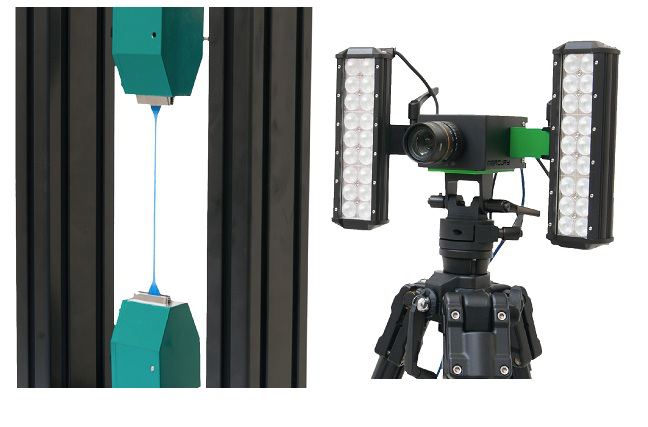

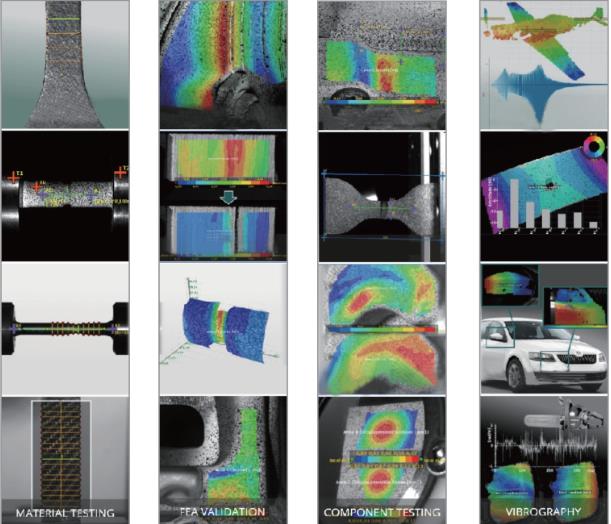

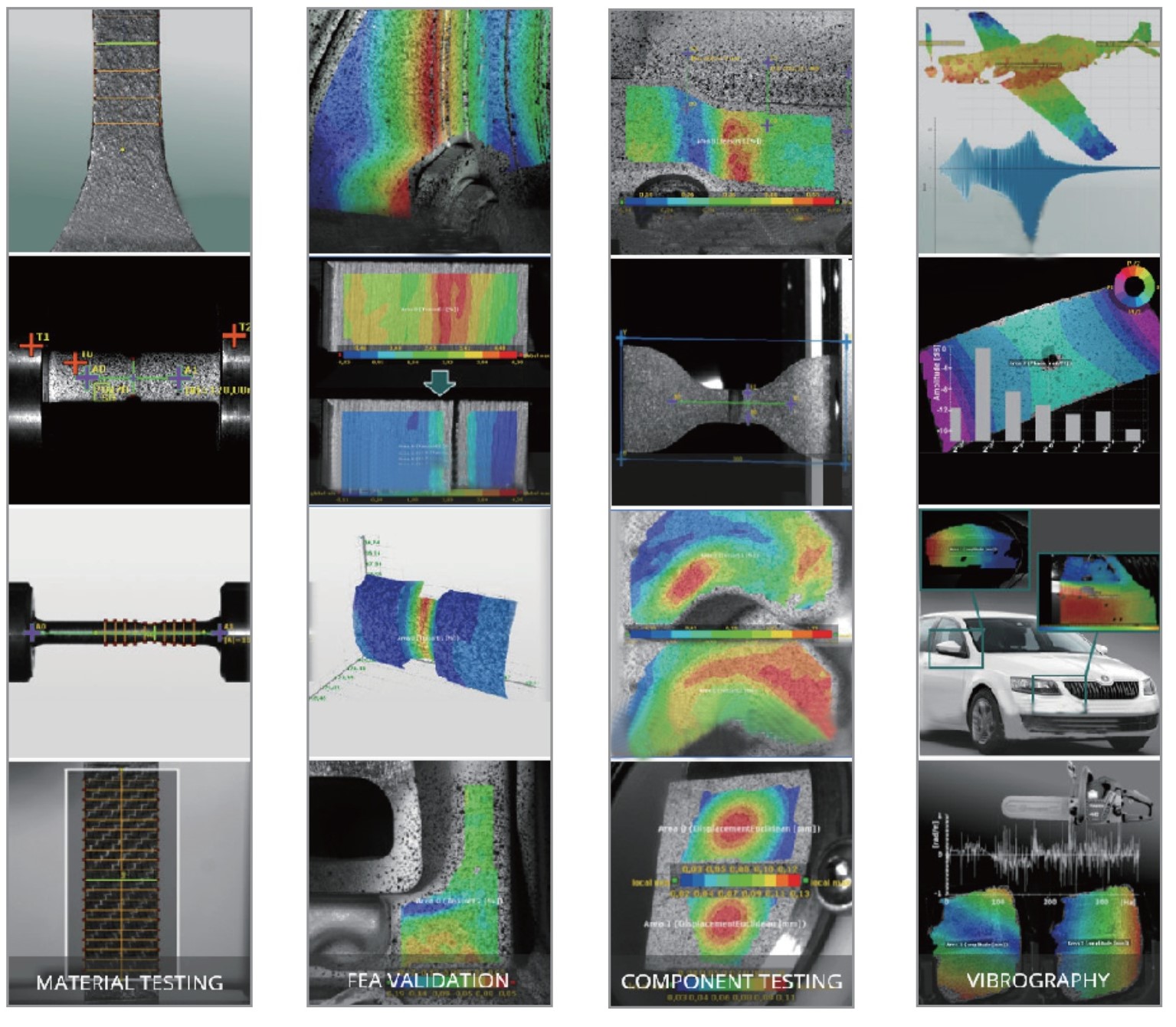

Material testing,Component testing ,FEA validation,Vibrography .
