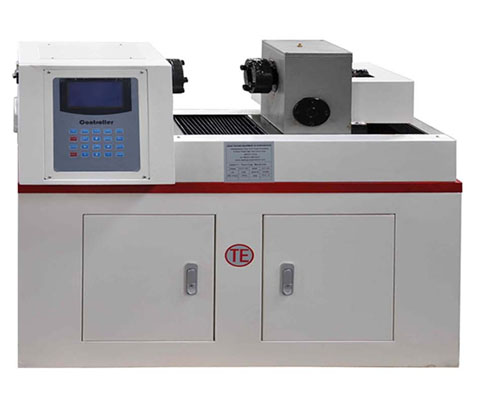

Digital Display Auto Torsion Testing Machine

Model: NJS Series


NJS Series Digital Display Auto Torsion tester is designed and built for torsion test on metal & non-metallic materials, as well as parts & components. NJS is loaded through the rotation of the active cartridge driven by the AC servo motor and cyclonical pinwheel reducer motor. The torque and torsion angle are measured respectively by the high-precision torque transducer and photoelectric encoder. The digital torsion testing machine is an essential instrument to inspect torsion properties of materials for mechanical laboratories of aviation industry, construction industry, scientific research department, universities and industrial enterprises.

Inquiry Now

● One key touch operation to finish the test automatically
● LCD monitor to show the test in real time
● Built-in Micro-printer to print out test results
Max. Test Torque (N.m) 50/100/150/200
Relative Error of Torque Display ≤±1.0%
Range of Test Speed(°/min) 0.36 - 360
Max. Reading of Torsion Angle( ° ) 9999.9
Resolution of Rreading of Torsion Angle ( ° ) 0.01
Relative Error of Torsion Angle Indications ≤ ± 1.0%
Testing Space Range (mm) 300 - 500
Power Supply AC 220 V ± 10%, 50Hz
Noise (dB) ≤65
Overall Dimension (mm) 970 × 330 × 540
Weight (kg) 400
