Rockwell Hardness Tester

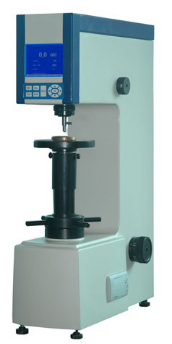

HRSS-560 Digital Rockwell & Superficial Rockwell Hardness Tester

Application:

This digital double Rockwell hardness tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the Rockwell and superficial Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer. It is suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.

Specifications:

Model	HRSS-560
Initial Test Force	3kgf (29.42N), 10kgf (98.07N)
Total Test Force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method	Automatic (Loading/Dwell/Unloading)
Hardness Reading	LCD Screen Display
Test Scale	HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale	HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output	Built-in Printer,RS232 Interface
Resolution	0.1HR
Dwell Time	0~60s
Max. of Specimen	175mm
Throat	165mm
Power Supply	AC220V,50Hz
Execute Standard	ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension	520×215×740mm, Packing Dimension: 650×370×980mm
Weight	Net Weight: 80kg, Gross Weight: 100kg

Brinell Hardness Tester

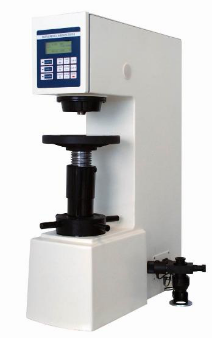

XHB-3000 Digital Brinell Hardness Tester

Application:

XHB-3000 Digital Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The indentation can be directly measured through the digital measuring eyepiece, and it can intuitively show the test force, indentation length, dwell time, test number, date and time on the large screen. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen. Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. According to the client’s requirement, it can be equipped with video measuring device and CCD image automatic measuring system. It is suitable for cast iron, steel products, nonferrous metals and soft alloys etc., and also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Specifications:

Model		XHB-3000
Test Force	kgf	62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
	N	612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test Range		3.18~653HBW
Hardness Reading		LCD Display
Conversion Scale		HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS
Data Output		Built-in Printer, RS232 Interface
Microscope		20× Digital Measuring Eyepiece
Minimum Division Value of Drum Wheel		1.25μm
Dwell Time		0~60s
Max. of Specimen		225mm
Throat		135mm
Power Supply		AC220V, 50Hz
Execute Standard		ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Dimension		545×235×790mm,Packing Dimension: 650×435×1060mm
Weight		Net Weight: 130kg, Gross Weight: 160kg

Micro Vickers Hardness Tester

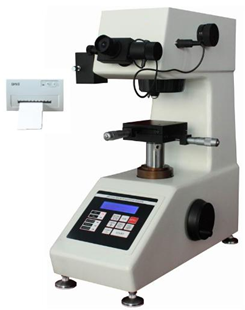

HVS-1000/HVS-1000Z Micro Vickers Hardness Tester

Application:

HVS-1000/HVS-1000Z Digital Micro Vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers and conversion scale. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the screen. Test results can be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness. And it can be equipped with LCD video measuring device and CCD image automatic measuring system. It is suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Specifications:

Model		HVS-1000	HVS-1000Z
Test Force	gf	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range		1HV~2967HV
Test Mode		HV/HK
Loading Method		Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter		Manual Shifting	Automatic Shifting
Conversion Scale		HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Data Output		Built-in Printer, RS232 Interface
Objective		10× (Observe), 40× (Measure)
Eyepiece		10×
Total Magnification		100×, 400×
Resolution		0.0625μm
Dwell Time		0~60s
Light Source		Halogen Lamp
X-Y Test Table		Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. of Specimen		100mm
Throat		98mm
Power Supply		AC220V, 50Hz
Execute Standard		ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension		480×325×545mm, Packing Dimension: 600×360×800mm
Weight		Net Weight: 31kg, Gross Weight: 44kg

Multifunctional Hardness Testers

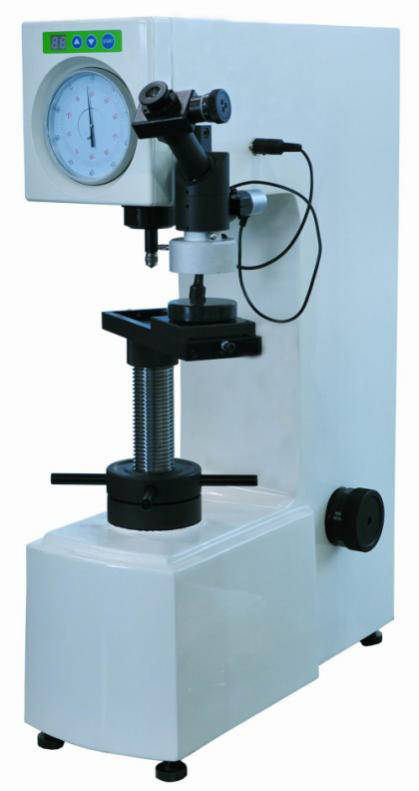

HBRV-187.5 Brinell Rockwell Vickers Hardness Tester

Application:

HBRV-187.5 Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic system, widely used and easy to operate, therefore it is the popular machine for industrial enterprises and scientific research institutes. It is suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.

Specifications:

Model	HBRV-187.5
Rockwell Test Force	60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force	30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force	30kgf (294.2N), 100kgf (980.7N)
Indenter	Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter
Hardness Reading	Rockwell: Dial, Brinell & Vickers: Check Hardness Table
Magnification	Brinell: 37.5×, Vickers: 75×
Resolution	Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm
Dwell Time	2~60s
Max. of Specimen	Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm
Throat	165mm
Power Supply	AC220V, 50Hz
Execute Standard	ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Dimension	520×240×700mm, Packing Dimension: 650×370×950mm
Weight	Net Weight: 80kg, Gross Weight: 105kg
