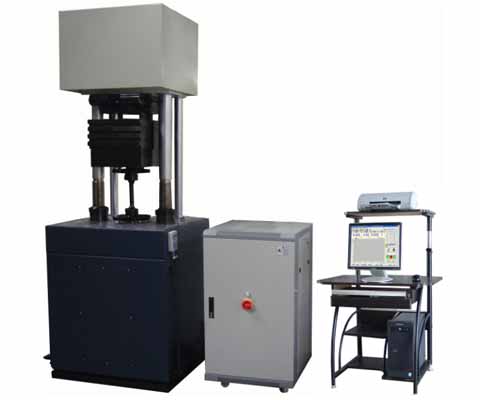

Electromagnetic Resonance High Frequency Fatigue Testing Machine

Model: PLG Series

Description:

This series of electromagnetic resonance fatigue testing machines are used for fatigue tests of metal material and components under tension, compression or reversal load. If relevant grips are provided, three-point bending test, four-point bending test, tension and compression of sheet sample test and circle test, gear wheel, bolt, connecting rod, roller chain, crackle expanding test can be available.
The series of electromagnetic resonance fatigue testing machines feature an optimized design and a rational structure. The automatic controlled system adopts an advanced and wide-pulse-control system and a new-type of power amplifier to improve the reliability of the electric system. The electromagnetic resonance fatigue testing system is with high efficiency, easy and non-stop shake, low energy consuming, accurate control, and small fluctuation.
The machines comply with DIN50100.

Email:sales@materialstestingmachinery.com

Inquiry Now

Specifications

Model		PLG-20C	PLG-100C	PLG-200C	PLG-300C	PLG-500C
Load Capacity (kN)		±20	±100	±200	±300	±500
Max. Step Pulse Load (kN)		±20	±100	±200	±300	±500
Load Capacity for Dynamic (Peak Value) (kN)		10 or 13	50 or 70	100 or 130	150 or 180	250 or 280
Relative Error of Static Load		≤±1%
Range of Frequency (Hz)		60 to 300
Power		160VA	300VA	600VA	800VA	1.2KVA
Load Fluctuation	Dynamic	0.5%F-S
Load Fluctuation	Static	0.5%F-S
Max. Distance between Grips (mm)		600	800	800	800	800
Max. Distance between Columns (mm)		420	500	540	620	720
Dimension (mm)	Load Frame	700 × 500 × 2010	800 × 700 × 2235	900 × 800 × 2600	1100 × 1100 × 2850	1500 × 1200 × 3100
Dimension (mm)	Control Cabinet	600 × 600 × 1200
Weight (kg)	Load Frame	1500	2750	4000	7200	10000
Weight (kg)	Control Cabinet	50	70	100	120	150
Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test
