Description

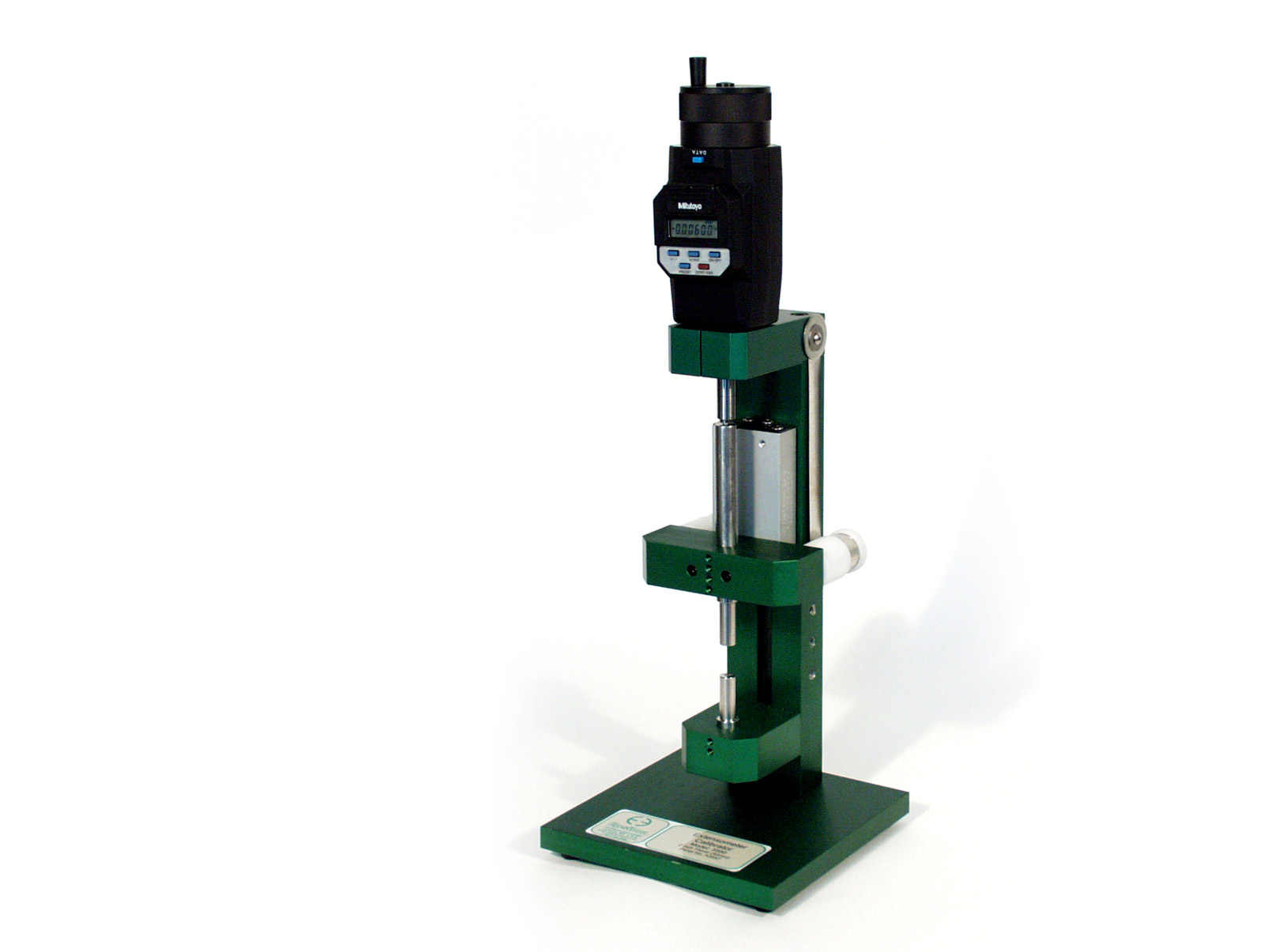

The 3590VHR uses a coarse adjustment screw for large displacements, coupled with a fine adjustment screw that allows fine adjustment to within approximately 0.025 microns (about 1 micro inch). When it comes time to calibrate your extensometers, these calibrators are easier to use and faster than any others on the market. They have enough measuring range to calibrate nearly all extensometers, and enough resolution to calibrate units with low measuring ranges.

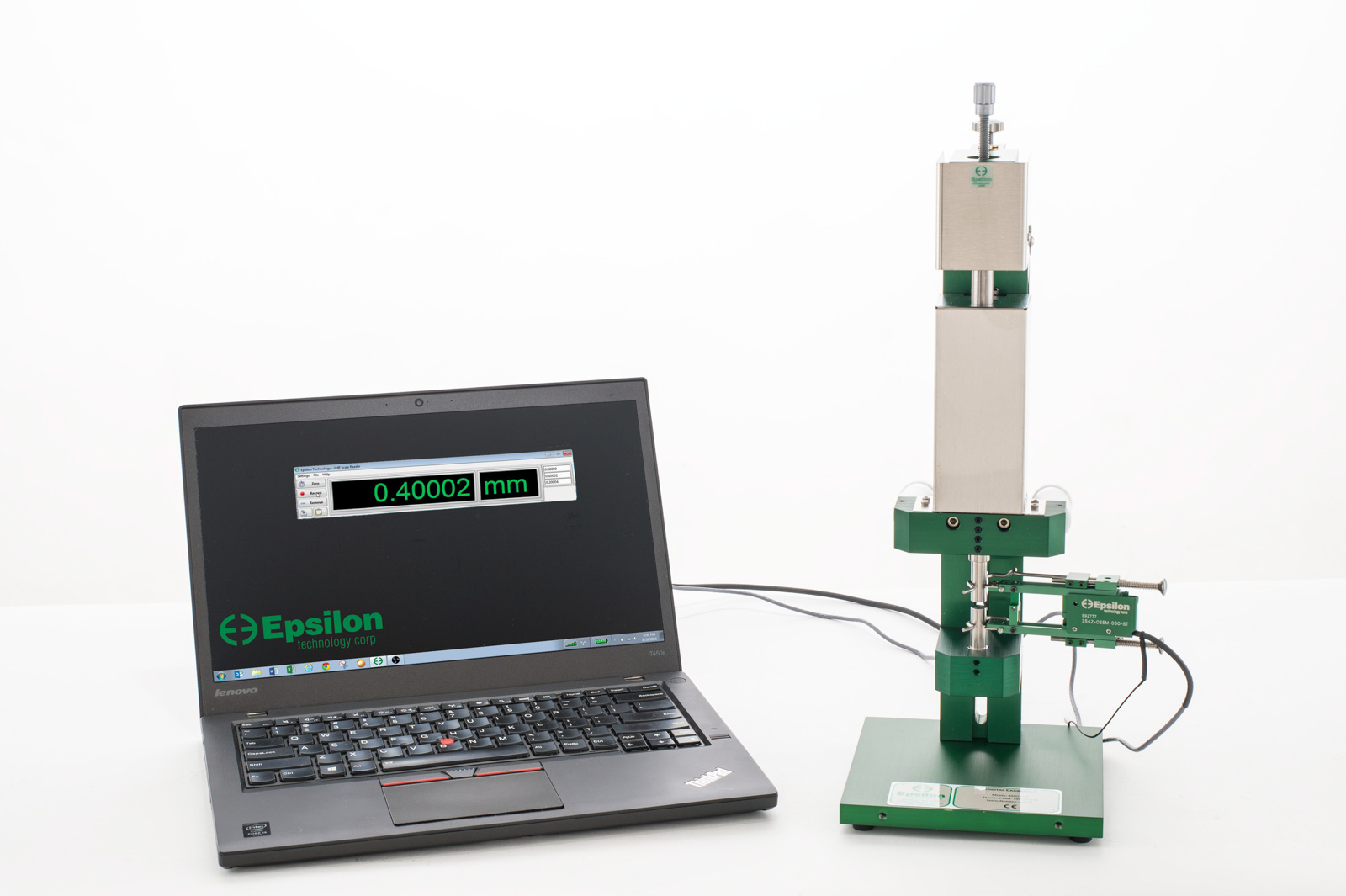

The software provided reads in both inches and millimeters. The autozero function is a great help in calibrating. Just activate it to start readings from zero. The digital display reduces operator error.
A wide range of adapters are available. The calibrator comes with smooth round adapters of 9.52 mm (0.375 inches) diameter. For special adapters, contact Epsilon. For very long gauge length extensometers, an optional extension post is available. The calibrator is provided with a calibration traceable to NPL (UK standards organization).
Features
-
Scale calibration traceable to NIST.
-
System fully calibrated traceable to NPL (UK standards organization).
-
Software for Windows-based PC provided; a PC with a USB port is required.
-
Readings taken on the PC with included software may be save to a data file.
-
Uses the same adapters as the model 3590 and 3590HR calibrators.
-
Provided with a foam-lined storage case.
-
Optional Netbook PC or stand-alone digital readout display.
Measuring Range:
50 mm (2 inch) maximum displacement
Maximum Range:
0-125 mm (0-5 inches) (maximum gauge length + displacement)*
Accuracy:
±0.19 µm (±7.5 µin) over any 0.12 mm (0.00475 inch) range
Meets ASTM E83 Class B-1
for a 6 mm gauge length and greater extensometers and ISO 9513 Class 0,5 over the full measuring range of the calibrator.
Resolution:
20 nm (0.8 µin)
Temperature Range:
18 °C to 28 °C (64 °F to 82 °F) operation**, -10 °C to 60 °C (14 °F to 140 °F) storage
Relative Humidity:
<90% (Non-condensing)
Connectivity:
USB 2.0 interface, self-powered
Weight:
3.6 kg (8 lbs) (standard configuration)
Adapters:
Ø9.52 mm (0.375 inch) posts included*
EMC Compliance:
BS EN 61326-1: 2006
Environmental:
EU Directive 2011/65/EU (RoHS)
Options
Digital readout display
Optional extensometer adapter sets, extension posts, and horizontal configuration kit:
3590-01
Smooth, round 6.35 mm (0.25 inch) diameter adapters
3590-02
Adapters for flat specimens
3590-3549
Adapters for Model 3549
3590-3648
Adapters for Model 3648
3590-03
Adapters for clip-on fracture mechanics gages
3590-04
Transverse extensometer adapter (Model 3560)
3590-11
Transverse extensometer adapters (Models 3575AVG,3575, 3475, 3580, 3565, 3911 and 3975)

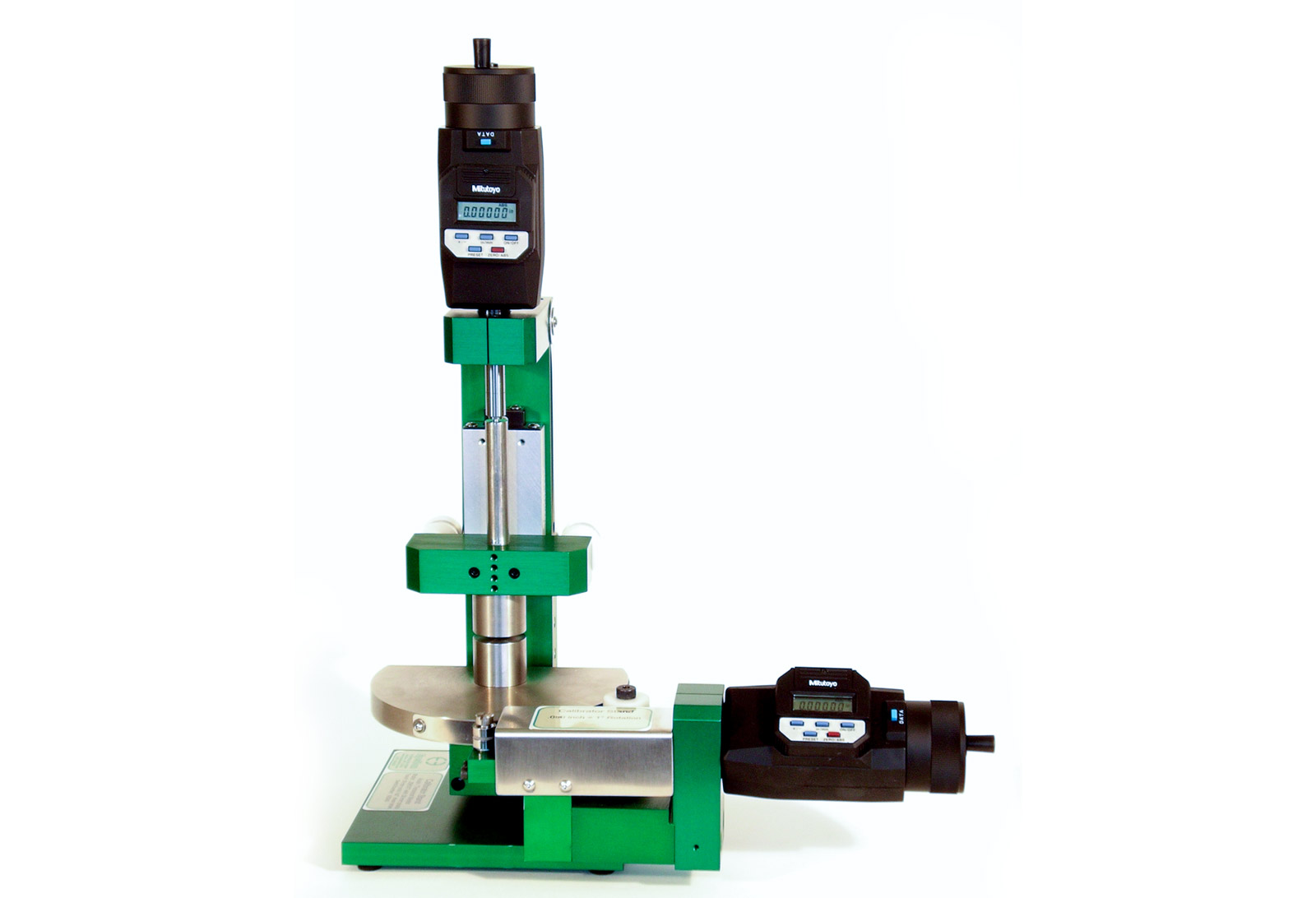

3590-11-KIT
Horizontal conversion kit for transverse extensometers – consists of legs for horizontal configuration, additional springs, and 3590-11 adapters; enables verification of transverse extensometers in the orientation that will be used for testing, as required by some calibration and verification standards
3590-06
Adapters for large averaging extensometers (Models 3542RA and 3442RA1)
3590-05
Circumferential adapters for Model 3544
3590-4013
Shear adapters for Model 4013
3590-3421
Shear adapters for Model 3421
3590-07
100 mm (4 inch) extension post for long gauge length extensometers
3590-55-10
250 mm (10 inch) extension post for long gauge length extensometers
3590-55-24
600 mm (24 inch) extension post for long gauge length extensometers
Custom – contact Epsilon for adapters to fit Models 7650A, 7650, 7651, and 3567
Note: Model 3590VHR and 3590 calibrators include 9.52 mm (0.375 inch) diameter smooth round adapters
