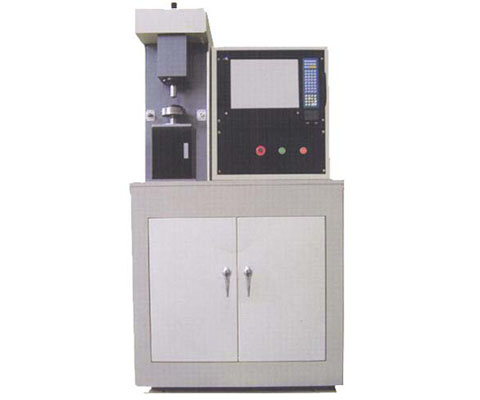

Wear Testing Machine

Model: M-2000


Model M-2000 Wear Testing Machine is to used test the anti-wear performance for metal and non-metal specimen under the sliding, rolling, and sliding-rolling condition. The Wear Testing Machine can also test various materials under dry-friction and wet-friction. The wear testing system can calculate friction work & friction coefficient by the data acquired. The Wear Testing Machine is widely used in universities, research & scientific institutes.

Inquiry Now

● Max.Load: 2000N
● Range of Load Measuring: 0 to 300N, 300 to 2000N
● Axial Speed of the Lower Specimen: 400r/min, 200r/min
● Axial Speed of Upper the Specimen: 360r/min, 180r/min
● Division of the Load Ruler: 0 to 300N, 10N/grade. 300 to 2000N, 50N/grade
● Measuring Range of Friction Moment of Force: 0 to 15N.m
● Measuring Classes of the Friction Moment of Force & Min. Value of Staff Gauge:
0 to 1N.m 0.02N.m/grade
0 to 5N.m 0.1N.m/grade
0 to 10N.m 0.2N.m/grade
0 to 15N.m 0.2N.m/grade
● Sizes of Specimen: Ø30 to 50 × 10mm
● The max. Stroke of the Upper Specimen: ±4mm
● Power of Motor: 3 phases, 380V, 50Hz. 1Kw, 0.75Kw. Speed: 2870r/min, 1440r/min
● Dimensions: 970mm × 660mm × 1100mm
● Net Weight: about 500kg

Methods to evaluate the wearable function:

● Weight: Before the test, make the specimen clean and dry, and measure the weight. After the test, measure the weight’s difference with a scale or balance.
● Diameter Measuring: Measure the variety of the diameter before and after the test.

Measuring instruments:

● Micrometer
● Small idler wheel in the machine
● Cut-in method
