Applied Standards
● Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
● Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
● Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1.
Load Frame
According to load capacity & test application, the load frames are available in single column, table and floor type to meet a variety of test applications.

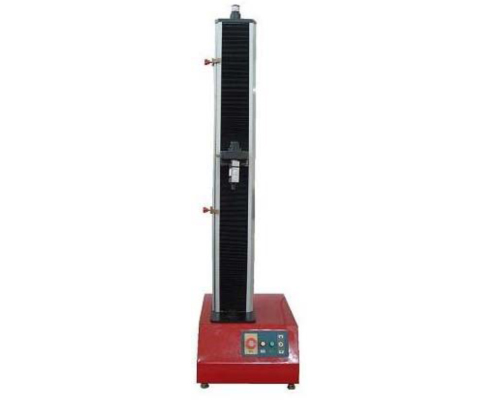

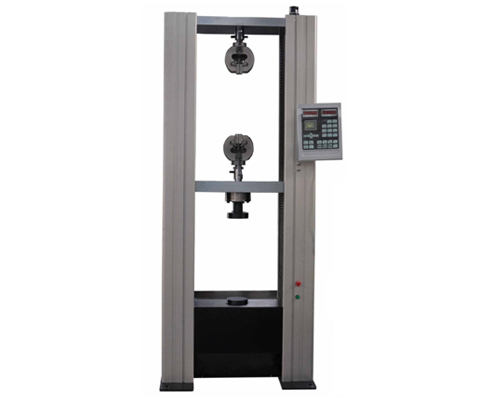

Single column machine is more suitable for bio-medical, textiles, plastic film industries where load testing requires a lower capacity (below 5kN). Dual-column is the main choice of rubber, plastic, composites, metal alloy, and fasteners, whose specimen needs a wide test area, middle strength, and high capacity.
The frames all take human factors into considerations in the design to ensure the safety, reduce operators’ fatigue and provide the highest flexibility. The extremely robust cross-head guidance is incorporated in all frame designs so as to provide the highest stiffness of lateral cross-heads.
Load cell is with high accuracy and interchangeable for all frames. Each frame is allowed to operate in full capacity.
Safety features:
The electromechanical testing machine for local components stops automatically when the change in the test force exceeds a specified value during operation.
Large space in the working area:
The insides of columns provide wide space for the operator.
Over-stroke limiter:
The range of the cross-head movement is mechanically limited.
Comfortable working area:
The wide legroom under the load unit provides a comfortable working area for attaching and removing jigs.
Specifications
|
Model
|
WDW-S1E/2E/5E
|
WDW-1/2/5/10/20E
|
WDW-50/100E
|
|
Max. load
|
kN
|
1/2/5
|
1/2/5/10/20
|
50/100
|
|
kgf
|
100/200/500
|
100/200/500/1.000/2.000
|
5.000/10.000
|
|
Load measuring range
|
2%~100% of F.S
|
|
Load accuracy
|
±1% of the reading
|
|
Deformation measuring range
|
2%~100% of F.S
|
|
Deformation accuracy
|
±1% of the reading
|
|
Position resolution
|
0.001mm
|
|
Position accuracy
|
1%
|
|
Vertical test space (mm)
|
910
|
1270
|
1350
|
|
Total crosshead travel (mm)
|
800
|
1220
|
1300
|
|
Column spacing (mm)
|
150
|
400
|
570
|
|
Max. tensile space (mm)
|
910
|
750
|
700
|
|
Max. compression space (mm)
|
865
|
1080
|
1150
|
|
Tensile jaw for round specimen(mm)
|
/ 1
|
Φ4~Φ14
|
Φ4~Φ20
|
|
Tensile jaw for flat specimen (mm)
|
0~8mm
|
0-14
|
0-21
|
Width x height of jaw (mm)
|
40 x 50
|
35x55
|
40x55
|
|
Compression platen diameter (mm)
|
Φ50
|
Φ100
|
|
Bending fixture span(mm)
|
/ 2
|
10-300
|
20-400
|
|
Length of bending roller (mm)
|
/
|
100
|
|
Diameter of bending roller (mm)
|
/
|
10
|
20
|
|
of bending supporter (mm)
|
/
|
50
|
90
|
|
Frame axial stiffness (kN/mm)
|
8
|
30
|
250
|
|
Power supply
|
1 phase, 220V/110V, 50Hz/60Hz
|
|
Power (kW)
|
0.4
|
1
|
1.5
|
|
Dimension (mm)
|
385x550x1415
|
700×540×1680
|
700×540×1820
|
|
Weight (kg)
|
55
|
120
|
210
|
|
Shipping dimension
|
900x500x1600
|
1150 x 810 x 2285
|
1150 x 810 x 2485
|
Note:
1. Single column machine equips with screw action parallel grip for flat specimens.
2. Single column machine isn’t configured with bending fixture as standard, it can be specially offered.
3. Appearance and specifications are subject to change without advance notice.
4. Equipment of other dimensions (extra height & extra width) & capacities can be offered in accordance to the necessity of customers.
5. The economic series electromechanical UTM are ideal for spring testing. Model shall be WDW-T***E when ordering;

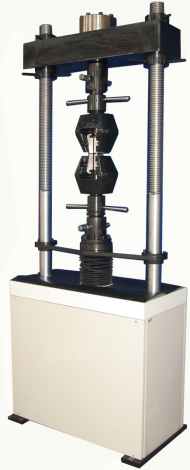

CMT Series Single Screw Electromechanical Universal Testing Machine
Application
The CMT series single screw testing machine is designed for mechanical property test mainly on metal materials, cement, asphalt, and bitumen etc. A variety of fixtures can be offered to do compression, bending and shearing test as well. This series of single screw testing machine is suitable for the applications in quality inspection, research, metallurgy, rubber & plastics, and knitting materials, and widely used in many fields such as industry factories, mineral enterprise and high schools.
Specifications
|
Max. Load (KN)
|
5/10/20
|
50/100/200
|
|
Measuring Range
|
2%~100%
|
|
Load Accuracy
|
±1% of the reading
|
|
Load Resolution
|
1/100000
|
|
Position Resolution (mm)
|
0.01mm
|
|
Displacement Accuracy
|
1%
|
|
Load Speed (mm/min)
|
0.01-200
|
|
Speed Accuracy
|
±1%
|
|
Max. Tensile Space
|
800
|
800
|
|
Column Spacing (mm)
|
420
|
600
|
|
Dimension (mm)
|
600 × 450 × 1800
|
800 × 700 × 2150
|
|
Weight (kg)
|
200
|
300
|
|
Power Supply
|
1 phase, 220V/110V, 50Hz/60Hz
|
3 phases, 380V/220V, 50Hz/60H
|
|
Power (kW)
|
0.4/0.75
|
1.3/2/3
|
WDW-L Series Electric Vertical Test Stand
Application
WDW-L series Electric Vertical Test Stand is a tensile compressive test stand especially designed to match push-pull force gauge. This series pf electric vertical test stand has good stability, wide application range and is convenient to use. The electric vertical test stand has stepless speed-adjusting uniform motion, digital display of the testing speed and converting mode between manual and automatic operation. The vertical test stand is specialized for tension/compression test, insertion/withdraw test, fatigue test and fracture test.
Specification
|
Model
|
WDW-L0.5
|
WDW-L1
|
WDW-L2
|
WDW-L5
|
WDW-L10
|
WDW-L20
|
|
Max. Load (kN)
|
0.5
|
1
|
2
|
5
|
10
|
20
|
|
Load Accuracy
|
<1%
|
|
Load Speed (mm/min)
|
50-245 (Max Load: 200N); 250-500 (Max Load: 500N)
|
50-245 (Max load: 500N); 250-500 (Max Load: 1000N)
|
50-500
|
30-240
|
30-120
|
30-120;
|
|
Stroke (mm)
|
250
|
520
|
600
|
200
|
200
|
200
|
|
Dimension L × W × H(mm)
|
430 × 245 × 570
|
410 × 270 × 970
|
465 × 310 × 1180
|
410 × 260 × 1030
|
410 × 260 × 1030
|
410 × 260 × 1030
|
|
Weight (kg)
|
24
|
32
|
52
|
55
|
60
|
65
|
Applied with (purchase additionally):
1. SN, SH/SP (Sensor Inside) push pull force gauge
|
|
|
SN- dial gauge
|
SH- digital
|
SP- digital with curve
|
2. Various clamps (customer option).
