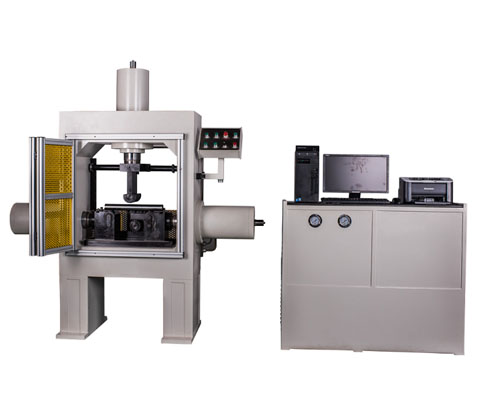

Computer Controlled Electro-hydraulic Servo Bending Testing Machine

Model: SBT Series

Description:

SBT series computerized bending testing machines are mainly used for bending and pressing tests for metallic sheet & round bars as per standards of GB/T232-2010 & ISO 7438-2005 Metallic Materials-Bend Test. An axial oil cylinder for bending test is installed on the top cross-head. Two pressing oil cylinders are installed at both sides of the frame, which adopts the synchronous control, to realize the pushing and pressing force on the bending support to adjust the distance between pivots. The pressure meter indicates the pressure in bending or pressing. Various load display can be selected, such as display through the pressure meter, digital display, and computer screen display etc. The computer control type SBT bending testing machine can do the bending test automatically or manually. The applied bending force can be adjusted by controlling the oil feed valve.

Email:sales@materialstestingmachinery.com

Inquiry Now

Features

● Load Frame: four columns
● Control Mode: computer servo control or manual control
● Bending & pressing can be performed at the same time.
● Vertical oil piston with stroke limit function helps batch test.
● Main piston is installed in the upper cross-head, while lateral pistons are located at both sides to realized balancing and pressing.
● Designed with a locking mechanism of bending span
● Safety actions are considered such as over load protection and over stroke protection.
● With computerized system, the computer control type SBT bending tester of servo-hydraulic can realize multilateral control of constant test load, constant test load speed ratio, and constant speed close-loop. Functions including auto return to the initial position, bending angle auto control can be realized.

Specifications

Models		SBT-200/300	SBT-500/600	SBT-1000	SBT-2000
Max. vertical bending load (kN)		200/300	500/600	1000	2000
Max. horizontal pressing load (kN)		200/300	300	500	1000
Max. net span range (mm)		320		400	340
Max. distance between supporters(mm)		370	400	450	420
of punch head(mm)		130	160	170	200
Dia. Of roller (mm)		Ф50	Ф80	Ф50	Ф80
Piston stroke (mm)	Vertical	320		400	500
Piston stroke (mm)	Horizontal	160		200	200
Max. speed (mm/min)	Vertical	300	400	300	300
Max. speed (mm/min)	Horizontal	150	300	200	200
Bending angle		0-180º
Power (kW)		5	6	8	15
Dimension (mm)		1840x550x2010	1950x590x2090	2030x590x2435	2720x730x2790
Weight (kg)		2000	2500	3500	5000
Diameter of punch head (mm)		5, 10, 12, 14, 15, 16, 20, 24, 25, 28, 30, 40, 44, 48, 50, 54, 56, 58, 60, 63, 66, 69, 72, 75, 80, 90, 100, 110, 120, 128, 160, 180, 200, 220, 240, 260, 280, 300, 320, 360, 400mm)
