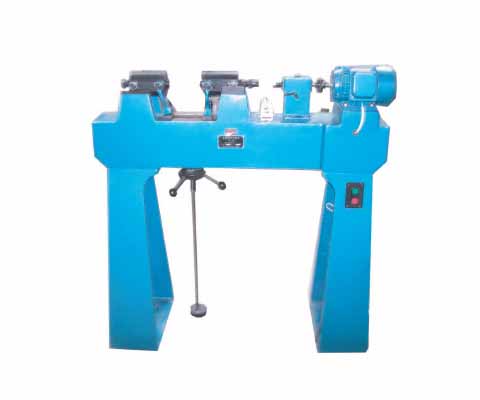

Pure Bending Fatigue Testing System

Model: PQ-6

Description:

PQ-6 Pure Bending Bending Fatigue Testing Machine is suitable for testing the fatigue strength of metals and other materials under bending & rotating. The Pure Bending bending fatigue testing machine is usually used to test the bending fatigue limit δ-1p of metals under the action of symmetrical repeatedly alternating bending force. Accordingly the tension-compression fatigue limit δ-1p and torsion fatigue limit δ-1 can be determined by calculation according to experienced formula. The Pure Bending Bending Bending Fatigue Tester Reversible has a simple structure and is easy to operate, both stable and reliable. The fatigue testing machine is very popular at factories and high school laboratories.

Email:sales@materialstestingmachinery.com

Specifications

Maximum Bending Torque	6 Kgf m (60 N.m)
Test Speed	3000 r/min
Co-axial of Left and Right Claws	0.02 mm
Diameter of Specimen	12, 17 mm
Max. Length of Specimen	226 mm
Temperature in Spindle Box	≤ 30℃
Counter Capacity	1 x 10⁷
Motor Power	0.75 KW, 380V, 50Hz, 3 phases
Overall Dimensions	1170mm × 500mm × 1220mm
