You Are Here:Home >> Product>>Dynamic Testing System > >>Hydraulic Pulse Fatigue Testing System

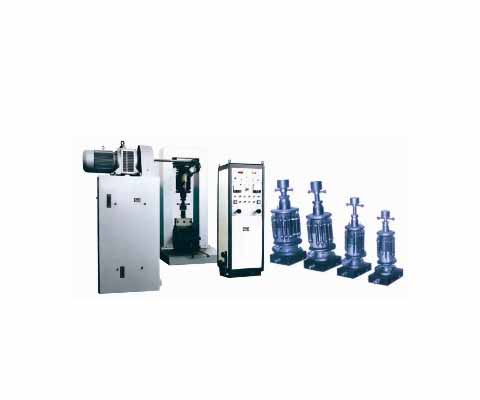

Hydraulic Pulse Fatigue Testing System

Model: PFT-500

Description:

PFT-500 hydraulic pulse fatigue testing machine is mainly applicable to large size parts such as bridges, trusses, automotive chassis, front and rear axles, locomotive frames, chassis and various concrete structures for static compression test and dynamic unidirectional pulse fatigue tests. The Fatigue Testing System for Rail has significant characteristics of reliable design, simple operation, energy conservation, and low operation cost etc.

Email:sales@materialstestingmachinery.com

Specifications

● Max. Dynamic Test Load: 500kN
● Load Accuracy: ±1%
● Frequency: 2 to 8Hz
● Max. Swing: 20mm
● Max. Stroke of the Actuator: 120mm
● Power: 11kw
● Dimensions of Load Frame: 450mm × 570mm × 1740mm
● Control Box: 1500mm × 800mm × 2100mm
● Weight: 3600kg

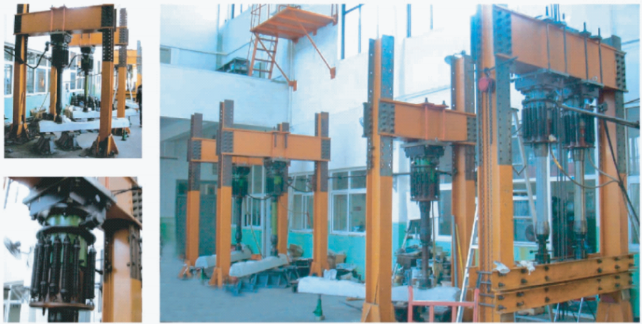

Pulse tension and compression fatigue testing of railway

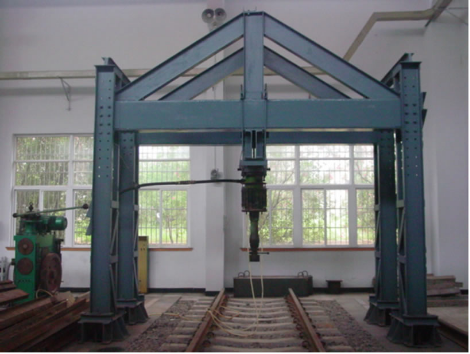

Pulse Fatigue Test for Rail Sleeper
