Common Electromechanical Universal Testing Machine

Model:WDW series

Description:

WDW series computer control electromechanical universal testing machines (UTM) is designed according to ASTM, ISO, DIN, EN standards etc.. It is computer-controlled and precision. Our electromechanical universal testing machine (UTM) is widely suitable for metallic and nonmetallic materials for tension, compression, bending, shearing and low cycle test. The electromechanical universal testing machine features as high precision, high stability and high reliability. Graph, test result display, data processing and printing can be done easily by its PC system and printer. Completed with modulus for metal, spring, textile, rubber, plastic and other material test, our electromechanical universal testing system is widely used in many fields such as industry factories, research and development, test institutes and training centers etc.

WDW common series electromechanical universal testing machines (UTM) adopt rigid load frames, accurate load weighting system, advanced PCIE measuring & control system and intuitive modular application software. Configured with wide range of accessories for applications, the materials universal testing machines (UTM) can provide the best testing solutions for your individual application needs. With 20 years’ experience of materials testing industry and based on abundant application knowledge, we are completely capable of configuring the best solutions and more accurately testing systems for the manufacturers involved in load frame, core measuring and control elements, software package, grip/fixture that based on their specified test application and other requirements.

Email:sales@materialstestingmachinery.com

Inquiry Now

Applied Standards
● Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
● Strain measurement of the universal testing machine (UTM) meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
● Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
Load Frame

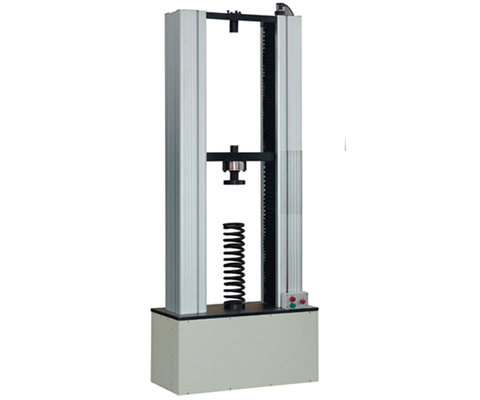

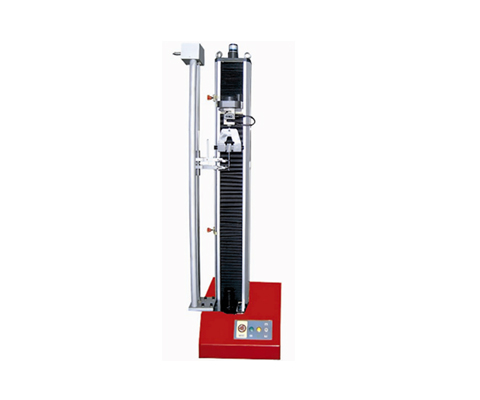

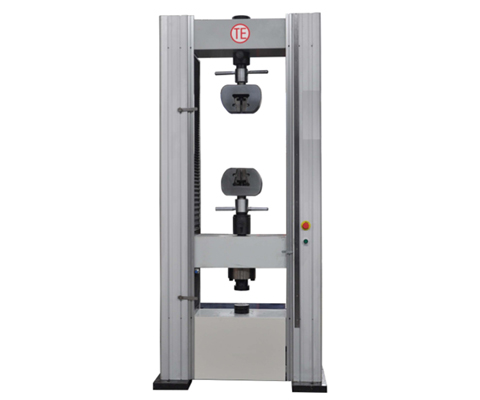

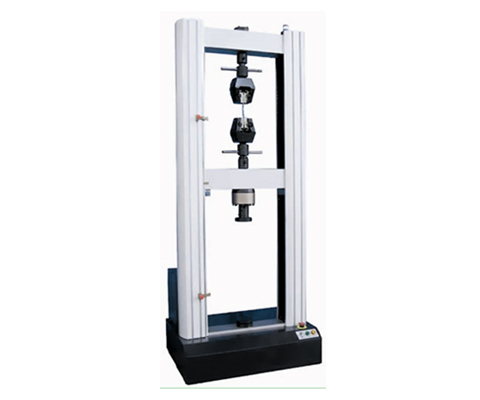

According to load capacity & test application, the load frames are available in single column, table and floor type to meet a variety of test applications.

Single column machine is more suitable for bio-medical, textiles, plastic film industries where load testing requires a lower capacity. Dual-column table type is the main choice for rubber, plastic, composites and metal sectors where the specimen needs a wide test area and middle strength. Floor type is the optimal units for most demanding applications of metal, alloys, and fasteners,. whose specimen needs a high capacity of size and strength.

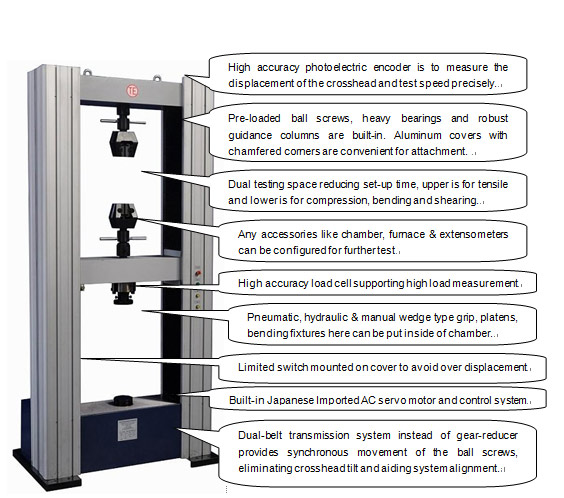

The frames all take human factors into considerations in the design to ensure the safety, reduce operators’ fatigue and provide the highest flexibility. The extremely robust cross-head guidance is incorporated in all frame designs so as to provide the highest stiffness of lateral cross-heads.

Load cell is with high accuracy and interchangeable for all frames. Each frame is allowed to operate in full capacity.

High accuracy:

The preloaded precision ball-screw with high speed & low noise ensures high speed and accuracy of position measurement and less noise.

High stiffness:

The load frame is with dual columns or four columns , and heavy duty pre-loaded bearings.

Safety features:

The testing machine stops automatically when the change in the test force exceeds a specified value during operation.

Large space in the working area:

The insides of columns provide wide space for the operator.

Over-stroke limiter:

The range of the cross-head movement is mechanically limited.

Comfortable working area:

The wide legroom under the load unit provides a comfortable working area for attaching and removing jigs.
Common load frame design

Specification
Model WDW-S1/2/5 WDW-0.5/1/2/5/10/20 WDW-25/30 WDW-50/100 WDW-200/250/300 WDW-500/600 WDW-1000
Max. load kN 1/2/5 0.5/1/2/5/10/20 25/30 50/100 200/250/300 500/600 1000
kgf 100/200/500 50/100/200/500/1.000/2.000 2.500/3.000 5.000/10.000 20.000/25.000/30.000 50.000/60.000 100.000
Load measuring range 0.4%(1/250)~100%(1/1)FS; 0.2%(1/500)~100%(1/1)FS (option)
Load accuracy ±0.5%/Class 0.5 (better than ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221)
Deformation measuring range 0.4%(1/250)~100%(1/1)FS;
Deformation accuracy ±0.5%/Class 0.5 ( better than ASTM E83, ISO 9513, BS 3846, EN 10002-4)
Position resolution 0.025μm
Position accuracy ±0.02mm or 0.1% of displacement (whichever is greater)
Crosshead moving speed (mm/min) 0.001-500/0.005-1000(option) 0.001-250/0.001-500(option) 0.001-250
Crosshead moving speed accuracy ±0.5% of set speed (zero or constant load)
Vertical test space (mm)1 990 1270 1330 1450 1500 2260
Total crosshead travel (mm) 900 1180 1230 1350 1400 1960
Column spacing (mm) / 420 500 570 590 650 660x400
Max. tensile space2 (mm) 560 750 640 650 500 1000
Max. compression space3 (mm) 740 990 1070 1050 800
Tensile jaw for round specimen(mm) / 4 Φ4~Φ14 Φ4~Φ20 Φ8~Φ32 Φ12~Φ40 Φ20~Φ60
Tensile jaw for flat specimen (mm) 0~8 0~14 0~21 0~27 0~30 0-40
x of jaw (mm) 40 x 60 35x55 40x55 50x75 70x90 110x110
Compression platen diameter (mm) Φ50 Φ100 Φ150
Bending fixture span(mm) / 5 10-240 20-320 20-400 30-420 30-450 50-500
Length of bending roller (mm) / 70 100 140 160
Diameter of bending roller (mm) / Φ10 Φ20 Φ30 Φ50
of bending supporter (mm) / 55 90 100 180
Power supply 1 phase, 220V/110V, 50Hz/60Hz 3 phase, 380V/220V, 50Hz/60Hz
Power (kW) 0.4 0.4 0.7 0.8/1.5 2/3 5 28
Dimension6 (mm) 385x550x1415 780x500x1737 840x600x1944 970x630x2070 1100x730x2390 1210x880x2560 1420x870x3590
Weight (kg) 55 140 230 700 1500 2400 5000
Shipping dimension 1600 x900x500 1930 x 900x700 2120 x 1160x1050 2240x1450x1000 2650x1250x1100 3150x1500x1250 4200x1800x1100
1. Vertical test space means the distance from bottom surface of moving cross-head to top surface of lower working table, which can be referred when adding other fixtures.
2. Max. Tensile space means the tensile distance when equipped with standard tensile grip.
3. Max. Compression space means compression distance when the universal testing machines (UTM) equipped with standard platens.
4. Single column machine equips with screw action parallel grip for flat specimens.
5. Bending fixture is not included in standard supply, it can be specially offered.
6. Frames with other dimensions (extra height or width) & capacities can be offered upon request.
Appearance and specifications are subject to change without advance notice.
