Hydraulic Bending and Re-bending Testing Machine

Model: GWB-40A

Description:

GWB-40A Hydraulic Bending and Re-bending Testing Machine is a special equipment to perform bending test on reinforce bar, steel bar and pipe etc. The Hydraulic Bending and Re-bending Testing Machine can do bending test with both directions according to the standard requirement. The Hydraulic Bending and Re-bending Tester conforms to standards, including ASTM A615, ASTM A615M, ISO 7438, and ISO8491 etc.

Email:sales@materialstestingmachinery.com

Specifications

● Diameter Range of Bars & Pipes: Ф8mm to Ф40mm
● Bending Angle: 0° to 180°
● Max. Bending Test Speed: <400mm/min
● Bending Core Diameter: 36, 42, 48, 54, 56, 60, 64, 66, 72, 75, 80, 112mm
● Piston Stroke: 400mm
● Dimension: 1350mm × 680mm × 1020mm

Working parts

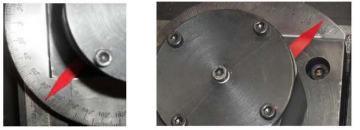

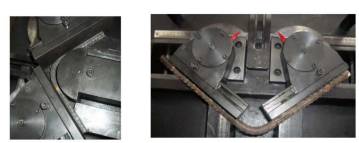

90° Bending Positive 20° Bending Reverse	180° Bending Positive

90° Bending Angle 70° Bending Angle (reverse)	180° Bending Angle
