Applied Standard
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
2. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
3. Safety: The computer control servo-hydraulic universal testing machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
4. Tensile test at room temperature: DIN EN 10002-1, ISO 6892, ASTM A370, ASTM E 8
5. Tensile test on reinforced steel: ASTM A615/A615M, ISO 10606, EN 10080
6. Compression test DIN 1048, ISO 6784, ASTM C39, ISO 4506
7. Tensile test for bolts: ASTM F606-07
8. Tensile Tests for Strands: ASTM A416, BS 5896
9. ASTM D143 Test Method for Shear Modulus at Room Temperature
10.ASTM A185/A185M-07 Standard Specification for Steel Welded Wire Reinforcement, Plain, for Concrete.

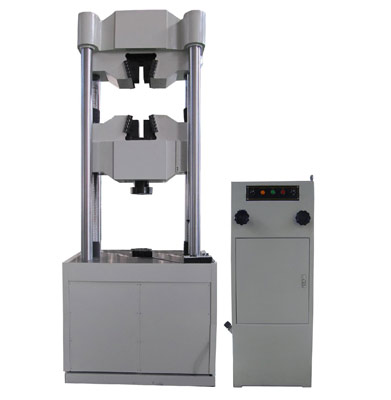

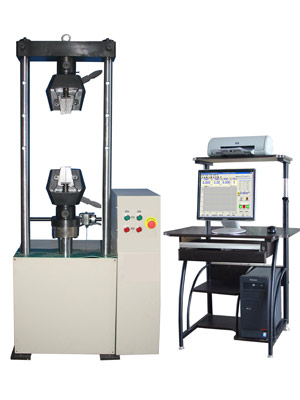

Load Frame Structure
Featuring a dual test space with high stiffness to meet extensive test applications, test loads are available from 300kN to 3000kN.
1. Compact design with rigid four-column & two-lead screw construction.
2. Dual work-space design. The upper one is for tension test (expandable for peel & tear test etc) while the lower one is for compression, bending and shearing tests, which is quite convenient for different kinds of tests.
3. The frames have considered all of the human factor into the design to ensure safety, improve testing efficiency, and reduce operators’ weariness.
4. Cylinder mounted at the bottom of the machine guarantees the working gravity.
5. Test space can be extended according to the length & elongation of specimen and other related test requirements.
Crosshead
The design of front open hydraulic wedge grips makes the exchange of inserts and specimen loading easier. Tensile grips are embedded into upper fixed and lower movable crosshead to keep maximum strength. Lower movable crosshead motor-driven by roller chain make the operation much easier.

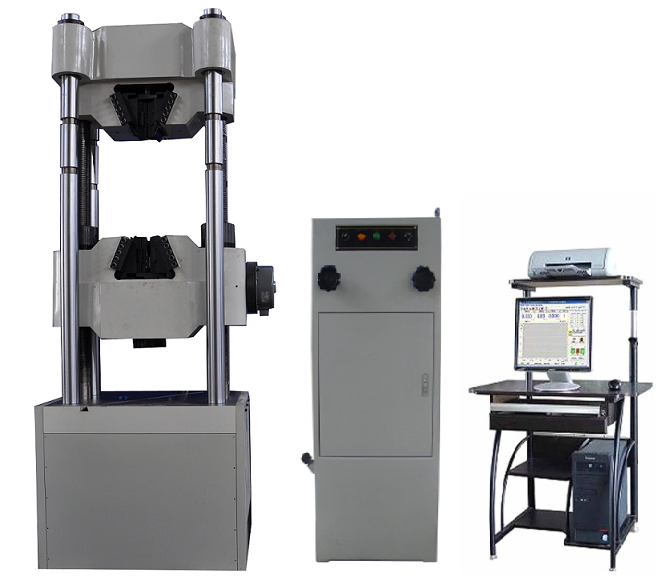

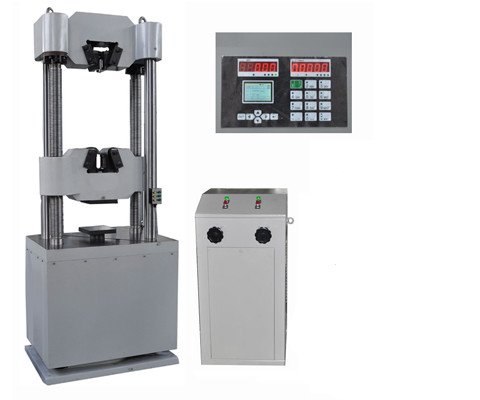

Hydraulic power pack of servo-hydraulic Testing Machine
1. Variable pressure hydraulic power supply provides pressure on demand, reducing heat, extending oil life and eliminating the need for water cooling.
2. Double control mode, manual control & PC servo control model. For manual control model, hydraulic pack is for manually loading and clamping specimen hydraulically for high efficiency of test. While test data & curves can displayed on PC, manual control mode is especially suitable for the batch broken load tests on the large scale of specimens. For PC servo control mode, all can be controlled & processed by PC automatically. Closed-loop servo control of position, load, stress & strain increases the test efficiency and meets the data consistency between collection and analysis.
3. The pumping units are designed to be located in the lab with lower noise level within 65dBa.
4. The oil pump, as the core heart of the oil source, is the power source of the hydraulic system. MARZOCCHI pumps from Italy and the NACHI pumps from Japan are commonly used. The two oil pumps are high pressure gear pump, with low noise and steady performance.
Specifications
|
Model
|
WAW-300/400E
|
WAW-500E/600E
|
WAW-1000E
|
WAW-1500E/2000E
|
WAW-3000E
|
|
Max. Load (kN)
|
300/400
|
500/600
|
1000
|
1500/2000
|
3000
|
|
Load Measuring Range
|
2 - 100%F.S. (0.2/0.4 - 100%F.S optional)
|
|
Load Accuracy (%)
|
±0.5/±1
|
|
Deformation Measuring Range
|
2 - 100%F.S. (0.2/0.4 - 100%F.S optional)
|
|
Deformation Accuracy (%)
|
±0.5/±1
|
|
Displacement Position (mm)
|
0.001
|
|
Test Loading Speed (mm/min)
|
0.5 - 50 (0.01 to 50 if configured with EDC220 controller & Moog servo valve)
|
|
Max. Crosshead Moving Speed (mm/min)
|
200
|
|
Stress Control Range
|
1 - 60(N/mm2)S - 1
|
|
Strain Control Range
|
0.00025/s - 0.0025/s
|
|
Tensile Space 1 (mm)
|
690
|
750
|
750
|
1000
|
1450
|
|
Compression Space (mm)
|
570
|
620
|
620
|
850
|
1250
|
|
Piston Stroke (mm)
|
250
|
250
|
250
|
250
|
250
|
|
Column Distance (mm)
|
435
|
480
|
570
|
840
|
860
|
|
Column Diameter (mm)
|
65
|
75
|
90
|
110
|
140
|
|
Working Table Size (mm)
|
550 × 670
|
600 × 670
|
650 × 800
|
900 × 1200
|
950 × 1250
|
|
Flat Jaw (mm)
|
0 - 15
|
0 - 30
|
0 - 40
|
10 - 70
|
10 - 70
|
|
Round Jaw(mm)
|
Φ9 - Φ32
|
13 - Φ40
|
Φ20 - Φ60
|
Φ20 - Φ80
|
Φ20 - Φ80
|
|
Jaw (mm)
|
73
|
90
|
110
|
160
|
160
|
|
Jaw (mm)
|
73
|
90
|
110
|
140
|
140
|
|
Platen Size (mm)
|
Ф128 × 30
|
Ф128 × 30
|
Ф148 × 40
|
Ф200 × 60
|
Ф200 × 60
|
|
Bending Span (mm)
|
30 - 480
|
30 - 500
|
50 - 500
|
50 - 720
|
50 - 900
|
|
Roller Diameter (mm)
|
Ф30
|
Ф30
|
Ф50
|
Ф50
|
Ф50
|
|
Roller Length (mm)
|
120
|
120
|
160
|
160
|
160
|
|
Bending Depth (mm)
|
100
|
100
|
180
|
180
|
180
|
|
Net Weight (kg)
|
1200
|
2450
|
3500
|
8500
|
11000
|
|
Max. 2 (mm)
|
2200
|
2400
|
2750
|
3500
|
4110
|
|
Dimension of Load Frame3 (mm)
|
720 × 560 × 1940
|
770 × 600 × 2150
|
900 × 650 × 2500
|
1300 × 900 × 3250
|
1340 × 1000 × 3860
|
|
Size of Power Pack (mm)
|
550 × 550 × 1410
|
550 × 750 × 1410
|
|
Oil Tank Volume (L)
|
ISO VG68# or VG46# hydraulic oil
|
|
110
|
110
|
110
|
150
|
230
|
|
Oil Pressure (MPa)
|
26
|
26.5
|
26
|
26
|
26
|
|
Footprint (L × W)
|
1120 × 800
|
1350 × 1350
|
1600 × 1600
|
2000 × 1800
|
2200 × 2000
|
|
Gross Weight (kg)
|
1300
|
2600
|
3700
|
8800
|
12000
|
|
Shipping Dimension (mm)
|
2600 × 1000 × 1150
|
2500 × 1000 × 1130
|
2700 × 1160 × 1100
|
4200 × 1450 × 1350
|
4600 × 1450 × 1350
|
|
980 × 830 × 178
|
980 × 860 × 1800
|
1540 × 980 × 1725
|
1500 × 1050 × 1600
|
1500 × 1050 × 1600
|
|
Power Supply
|
3PH, 380VAC, 50Hz, 2kW
|
3PH, 380VAC, 50Hz, 3kW
|
3PH, 380VAC, 50Hz, 5kW
|
3PH, 380VAC, 50Hz, 6kW
|
3PH, 380VAC, 50Hz, 8kW
|
Notes:
1. Tensile space excludes 100mm piston stroke;
2. Max. Height includes 250mm piston stroke;
3. The height of load frame excludes piston stroke;
