Types

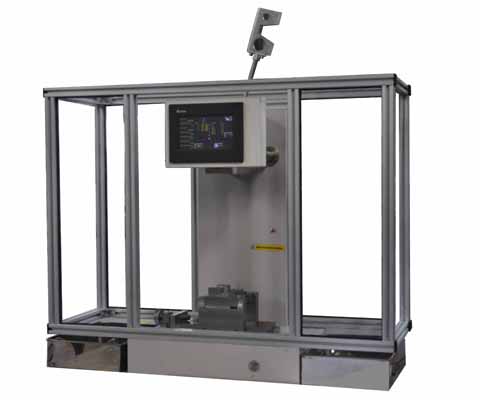

Three display types are available, i.e. Analog type, Digital Display type & PC type

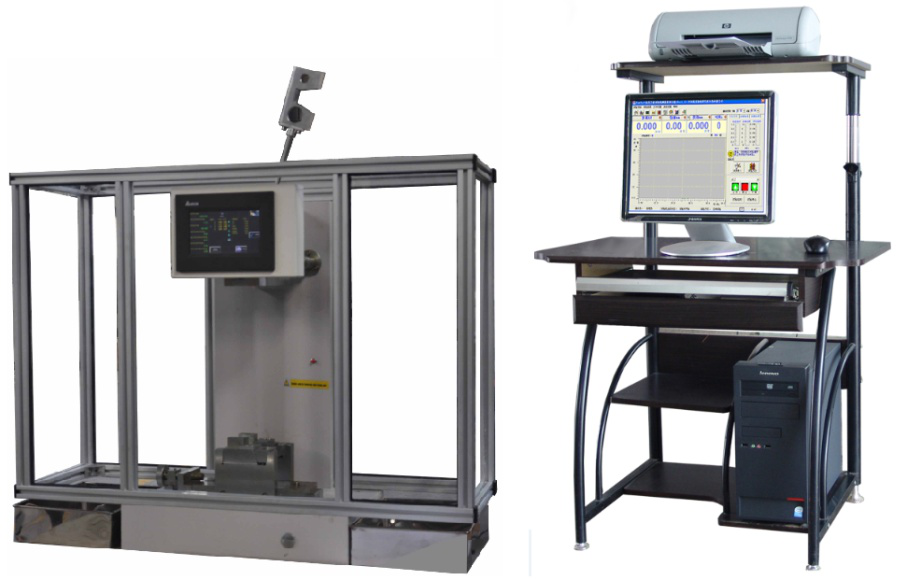

Especially for PC display, more functions are available like auto clear zero, pneumatic hammer releasing (optional) and motorized hammer rising (optional). Energy compensation and pendulum cycle calibration make the testing data more accurate. The result can be displayed, stored and printed out.
Specifications
Span of the Charpy Anvil: 40mm, 60mm, 70mm & 95mm
Pre-elevation Angle: 160°
| Model |
Type |
Display |
Energy(J) |
Impact speed(m/s) |
| JB-I 2.75 |
Izod |
Dial |
1, 2.75 |
3.5 |
| JB-I 5.5 |
1, 2.75, 5.5 |
3.5 |
| JB-I 22 |
2.5, 11, 22 |
3.5 |
| JB-I 2.75D |
Izod |
Digital |
1, 2.75 |
3.5 |
| JB-I 5.5D |
1, 2.75, 5.5 |
3.5 |
| JB-I 22D |
5.5, 11, 22 |
3.5 |
| JB-5 |
Charpy |
Dial |
1, 2, 4, 5 |
2.9 |
| JB-25 |
7.5, 15, 25 |
3.8 |
| JB-25Z |
1, 2, 4, 5/7.5, 15, 25 |
2.9/3.8 |
| JB-50 |
7.5, 15, 25, 50 |
3.8 |
| JB-5D |
Charpy |
Digital |
1, 2, 4, 5 |
2.9 |
| JB-25D |
7.5, 15, 25 |
3.8 |
| JB-25ZD |
1, 2, 4, 5/7.5, 15, 25 |
2.9/3.8 |
| JB-50D |
7.5, 15, 25, 50 |
3.8 |
| JB-IC5 |
Izod |
Dial |
1, 2.75 |
3.5 |
| Charpy |
1, 2, 4, 5 |
2.9 |
| JB-IC2522 |
Izod |
Dial |
5.5,11, 22 |
3.5 |
| Charpy |
7.5, 15, 25, |
3.8 |
| JB-IC25(D) |
Izod |
Dial (Digital) |
1, 2.75, 5.5, 11, 22 |
3.5 |
| Charpy |
1, 2, 4, 5/7.5, 15, 25 |
3.8 |
| JB-IT50(D) |
Izod |
Dial (Digital) |
1, 2.75, 5.5, 11, 22 |
3.5 |
| Charpy |
1, 2, 4, 5/7.5, 15, 25, 50 |
2.9/3.8 |
| Tensile Impact |
15J |
3.8 |
| Load frame dimension(mm) |
500x400x755 |
| Load frame dimension With safety shield(mm) |
1070x400x1240 |
| Weight (kg) |
130 |
Note:
The models above can be all upgraded to computer type by customer’s requirement.
