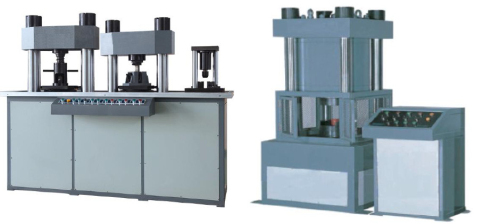

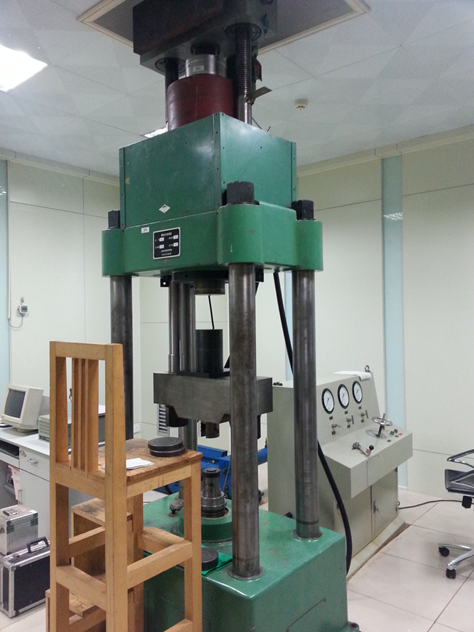

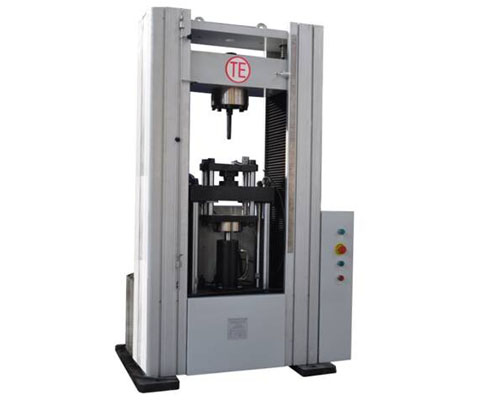

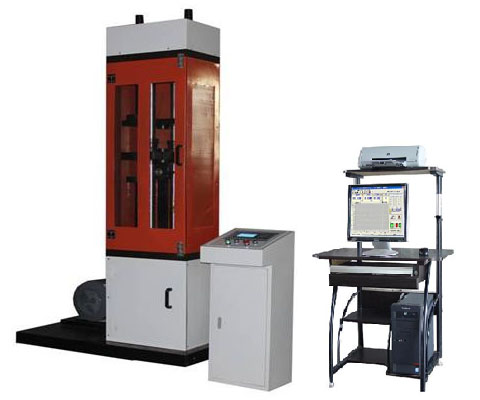

Upset Testing Machine

Model: YQ/YQR Series

Description:

The series of upset testing machine are designed according to the International Standard 'Metallic Materials Upset Test Methods', especially for the quality inspection of high-speed rods and wires. Through simulating the quick impact conditions of the metallic materials during the upset and pressing, the machine truthfully reflects the instances of the quickly compressed rods and wires. Under room temperature or hot conditions, exert test force in the direction of specimen axial line, quickly compress the specimen, and then the machine can inspect the metal ability of bearing upset deformation in the specified upset ratio. The upset testing machine can also show the metal’s surface disfigurements. The upset testing machine is widely used in the steel industry, standard specimen manufacturing industry, and tools manufactures for inspecting the upset tests of metallic materials.

Email:sales@materialstestingmachinery.com

Inquiry Now

Specifications
Model YQ-1000 YQ-2000 YQ-3000 YQ-5000
YQR-1000 YQR-2000 YQR-3000 YQR-5000
Max. Upset Force (kN) 1000 2000 3000 5000
Max. Shearing Force (kN) 1000 1000 / /
Max. ment Force (kN) 150 150 / /
Cold Upset Speed (mm/s) 30 50 60 70
Hot Upset Speed (mm/s) 50 70 90 100
Upset Time (s) 0.5 0.5 0.5 0.5
Specs for Shearing (mm) 5 to 20 5 to 25 / /
Specs for Cold Upset (mm) 5 to 20 5 to 25 5 to 40 5 to 50
Specs for hot Upset (mm) 5 to 35 20 to 60 20 to 90 20 to 110
Cold Upset Ratio 1/2,1/3 1/2 1/3 1/2
Hot Upset Ratio 1/3 1/3 1/3 1/3
Safety Actions Protection for over to loading and stroke limit etc, good security
Dimensions of Load Frame (mm) 1800 × 570 × 1600 1900 × 570 × 1900 690 × 690 × 1905 965 × 965 × 2220
Dimensions of Pump House (mm) 800 × 800 × 1020 800 × 800 × 1020 1590 × 1000 × 1040 1590 × 1000 × 1040
Dimensions of Working Platform (mm) / / 560 × 550 × 950 560 × 550 × 950
Power Supply AC 380V, 3 phases, 50Hz
Gross Power (kW) 3.5/6 4/6 8 9
Weight (kg) 2500 3800 4500 5000
