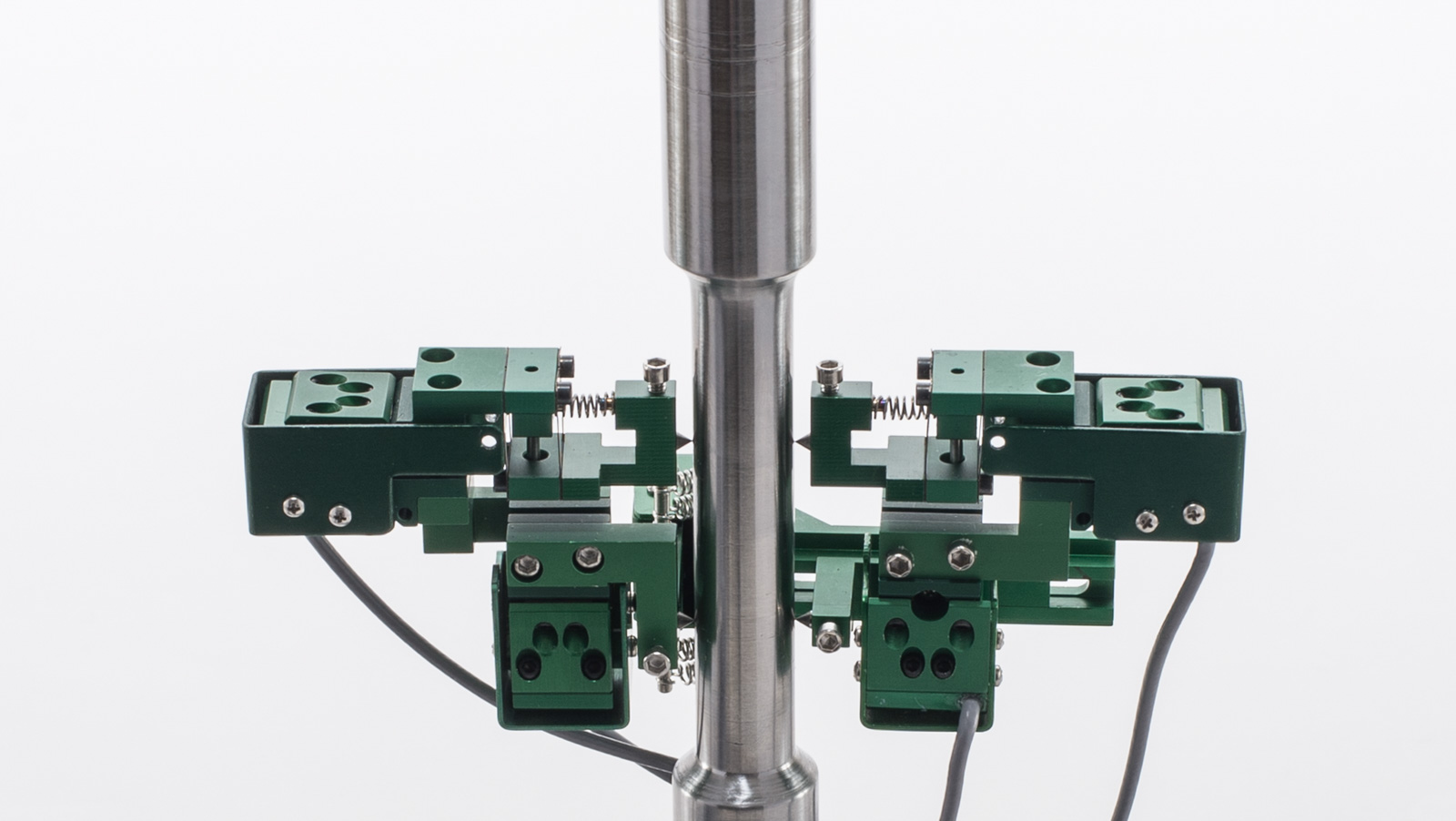

The Model 3550 extensometer is most often used on round specimens tested in bi-axial test machines capable of simultaneous axial and torsional loading. The extensometer is often customized for particular applications. All units are capable of bi-directional displacement, so they may be used for cyclic testing under fully reversed loading conditions. The standard sized model is self-supporting on the specimen, and works on specimens from 9.5 to 25.4 mm (0.375 to 1.000 inches) diameter. The conical point contacts included with the extensometer are made from tungsten carbide. Their unique design directly measures the surface shear strain angle, which allows operation on a wide range of specimen diameters without changing calibration. All models are designed specifically to minimize crosstalk between axes and to provide high accuracy measurements. All feature the dual flexure design common to other Epsilon extensometers. Available options cover temperature ranges from -265 °C to 200 °C (the standard temperature range is -40 °C to 100 °C). Both inch and metric versions are available. A wide range of gauge length and measuring ranges are available. Because these transducers are often used for specialized tests, contact Epsilon with your specific test needs. The Model 3550 extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Excitation:

5 to 10 VDC recommended, 12 VDC or VAC max.

Output:

2 to 4 mV/V, nominal, depending on model

Linearity:

≤0.15% of full scale measuring range, depending on model

Temperature Range:

Standard (-ST) is -40 °C to +100 °C (-40 °F to 210°F)

Cable:

Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Operating Force:

<30 g typical

Crosstalk:

Less than 0.5%
