You Are Here:Home >> Product>>Bending Testing Machine > >>Motorized Bending Testing Machine

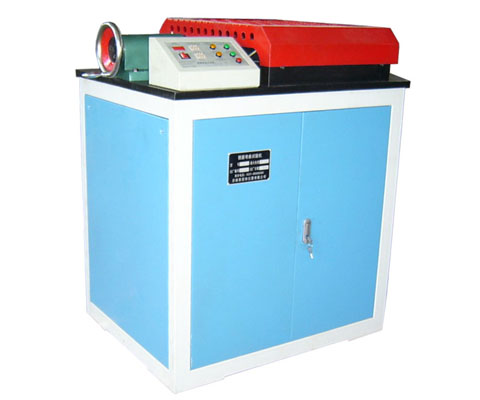

Motorized Bending Testing Machine

Model GW-40A/50A

Description:

GW-A series motorized bending testing machines are special equipment for bending test on reinforce bar, steel bar and pipe etc. The motorized bending testing machine can do bending test in both directions according to the standard requirement. The motorized bending tester conforms to standards including ASTM A615, ASTM A615M, ISO 7438, and ISO8491 (E) etc.

Email:sales@materialstestingmachinery.com

Specifications

Model	GW-40A	GW-50A
Diameter Range of Bars & Pipes (mm)	Ф6 to 40	Ф6 to 50
Bending Angle-positive Direction (°)	0 to 180 (the angle can be set freely in the range)
Bending Angle-reverse Direction (°)	0 to 25 (the angle can be set freely in the range)
Rotating Speed (r/min)	<3.7	<3.0
Diameter of Driving Tray (mm)	Ф580	Ф860
Power of Motor (kW)	1.5	3
Dimension of the Unit (mm)	1200 × 1000 × 960	1460 × 1200 × 1200
Weight (kg)	1000	1700


Working table	Bending rollers & mandrels

Download

Video
