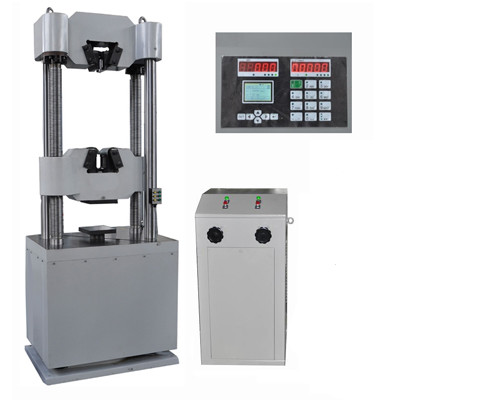

Applied Standard
1. Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
2. Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
3. Safety: This machine conforms to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
4. Tensile test at room temperature: DIN EN 10002-1, ISO 6892, ASTM A370, ASTM E 8
5. Tensile test on reinforced steel: ISO 10606, EN 10080
6. Compression test: DIN1048, ISO6784, ASTM C39, ISO4506
7. ASTM E143 Test Method for Shear Modulus at Room Temperature
8. ASTM F606-07 Tensile test for bolts
9. ASTM A185/A185M-07 Metals & Construction material
Technical Specification
|
Model
|
WEW-200/300D
|
WEW-400/600D
|
WEW-1000D
|
WEW-2000D
|
|
Max. Load(kN)
|
200/300
|
400/600
|
1000
|
2000
|
|
Load Measuring Range
|
2 - 100%F.S.
|
|
Load Accuracy (%)
|
±1
|
|
Deformation Measuring Range
|
2 - 100%F.S.
|
|
Deformation Accuracy (%)
|
±1
|
|
Displacement Position (mm)
|
0.01
|
|
Tensile Space 1 (mm)
|
620
|
690
|
590
|
900
|
|
Compression Space (mm)
|
550
|
620
|
520
|
750
|
|
Piston Stroke (mm)
|
200
|
250
|
250
|
250
|
|
Column Distance (mm)
|
500
|
570
|
600
|
580
|
|
Flat Jaw (mm)
|
0 - 15
|
0 - 30
|
0 - 40
|
0 - 50
|
|
Round Jaw (mm)
|
Φ9 - Φ32
|
Φ13 - Φ40
|
Φ13 - Φ55
|
Φ20 - Φ70
|
|
Jaw (mm)
|
73
|
90
|
110
|
160
|
|
Jaw (mm)
|
73
|
90
|
110
|
140
|
|
Platen Size (mm)
|
Φ120
|
Φ150/170 × 170
|
Φ150/204 × 204
|
Φ200/204 × 204
|
|
Bending Span (mm)
|
450
|
360
|
360
|
600
|
|
Roller Diameter (mm)
|
Φ30
|
Φ50
|
Φ50
|
Φ50
|
|
Roller Length (mm)
|
120
|
120
|
160
|
160
|
|
Bending Depth (mm)
|
100
|
100
|
180
|
180
|
|
Weight of Load Frame (kg)
|
2000
|
2500
|
3300
|
5500
|
|
Dimension of Load Frame 3 (mm)
|
800 × 500 × 1950
|
950 × 630 × 2265
|
980 × 650 × 2220
|
1200 × 850 × 2900
|
|
Size of Power Pack(mm)
|
580 × 540 × 1090
|
|
Power Supply
|
3PH, 380VAC, 50Hz, 2kW
|
3PH, 380VAC, 50Hz, 2.2kW
|
3PH, 380VAC, 50Hz, 2.2kW
|
3PH, 380VAC, 50Hz, 4kW
|
