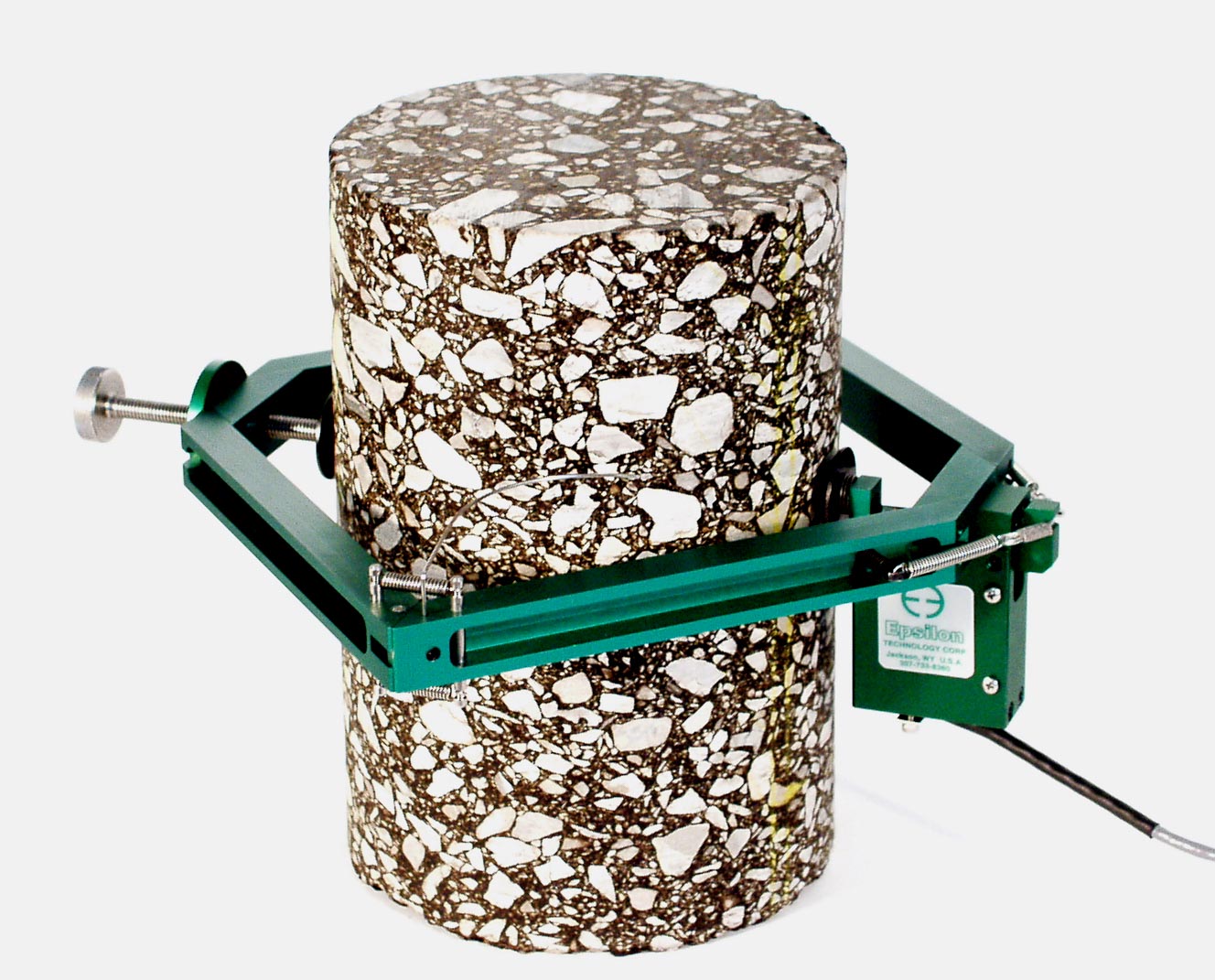

Self-supporting on the test sample, these extensometers will work on standard sized diameter samples, but special configurations are available upon request. They are designed for use in testing for Poisson’s ratio and for applications where accurate diametral measurements with low strains are required. The Model 3975 is the best choice for small diametral strains in large compression samples. Epsilon’s circumferential extensometer, the Model 3544, is recommended for large strain measurements. These units are easily attached to the sample, and rounded contact edges maintain the position on the specimen. The Model 3975 extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Excitation:

5 to 10 VDC recommended, 12 VDC or VAC max.

Output:

2 to 4 mV/V, nominal, depending on model

Linearity:

≤0.20% of full scale measuring range, depending on model

Temperature Range:

Standard (-ST) is -40 °C to +100 °C (-40 °F to +210°F)

Cable:

Integral, ultra-flexible cable, 8 ft (2.5 m) standard
