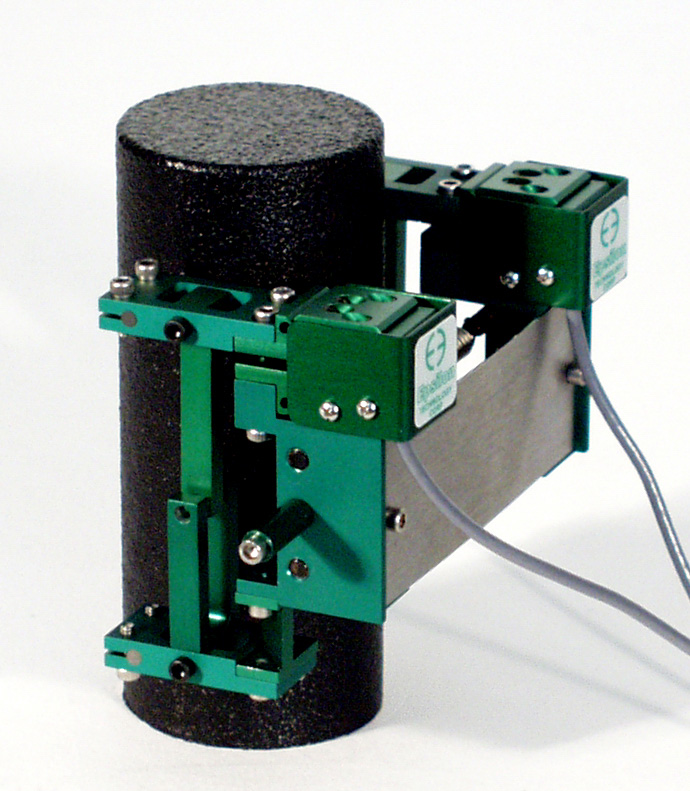

Axial strain is measured on opposite sides of the test specimen and the output is an average of the two readings. The Model 3442RA1 is available in a variety of configurations for samples 50 mm (2 inches) or smaller in diameter. All are self-supporting on the specimen and mount very easily. The conical point contacts included with the extensometer are made from tungsten carbide. If desired, the two cut-outs can be independently configured, providing two readings. Epsilon has versions for use in oil to 1360 bar at 200 °C (20,000 psi at 400 °F). These units will fit in small inside diameter vessels. For large diameter specimens, we suggest one of the Model 3542RA averaging axial extensometers. The Model 3442RA1 extensometers are strain gaged devices, making them compatible with any electronics designed for strain gaged transducers. Most often they are connected to a test machine controller. The signal conditioning electronics for the extensometer is typically included with the test machine controller or may often be added. In this case the extensometer is shipped with the proper connector and wiring to plug directly into the electronics. For systems lacking the required electronics, Epsilon can provide a variety of solutions, allowing the extensometer output to be connected to data acquisition boards, chart recorders or other equipment.

Excitation:

5 to 10 VDC recommended, 12 VDC or VAC max.

Output:

2 to 4 mV/V, nominal, depending on model

Linearity:

≤0.20% of full scale measuring range, depending on model

Temperature Range:

Standard (-ST) is -40 °C to +100 °C (-40 °F to 210 °F)

Cable:

Integral, ultra-flexible cable, 2.5 m (8 ft) standard

Operating Force:

<30 g typical per side
