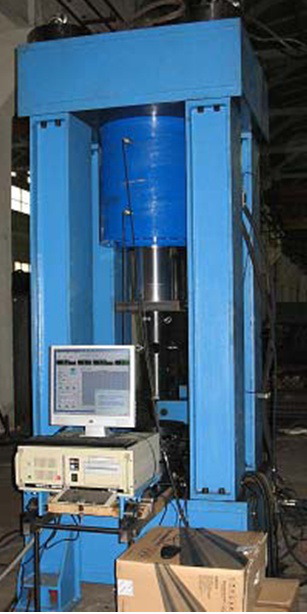

Computer Servo Control Testing Machine for Rock Stiffness

Model: YAW-G3000

Description:

This Computer Servo Control Testing Machine for Rock Stiffness is used for static fatigue compression test for concrete & rock material under different parameters. The test includes compression, shearing test, three-point bending testing & fatigue test. Meanwhile, the Computer Servo Control Testing Machine can also realize the automatic control, measuring, data processing; curve analyzing, result displaying and test report printing in the process of various tests. The stiffness testing system can do full process test under stress and strain.

Email:sales@materialstestingmachinery.com

Inquiry Now

Specifications

● Max. Load Capacity: 3000kN
● Measuring Range: 60kN to 3000kN
● Load Accuracy: ±0.5% (Under the condition of less than 1000kN loading, it adopts pressure transducer mounted on oil cylinder used for measuring oil pressure.), ±1% (Under the condition of more than 1000kN loading, it adopts load transducer mounted under compression plate used for measuring test load.)
● Max. Load Speed: 400mm/min.
● Displacement Resolution: 0. 01mm
● Deformation Accuracy: 0.0001 (Adopting Japanese imported differential transformer)
● Max. Stroke of Piston: 200mm
● Size of Compression Plate: φ300mm

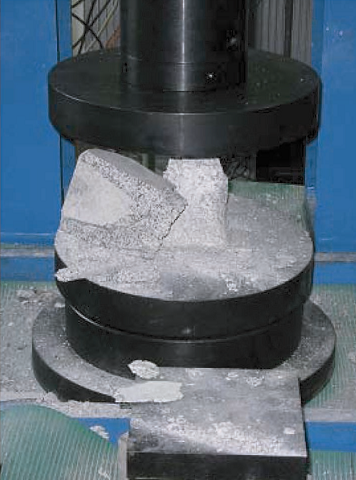

Rock compression and shear test fixtures

Remarks:

We can supply the load range from 300kN to 3000kN for those compression testing machines. In addition, we can also provide rock specimen for tri-axial, bending, indirect-tension, fracture, creep and other compression testing machines according to your test requirements.
