Applied Standards
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, and DIN 51221 etc.

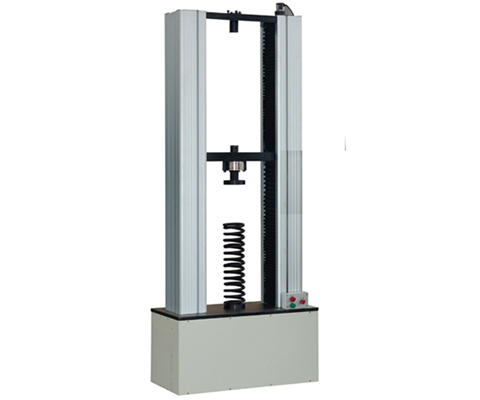

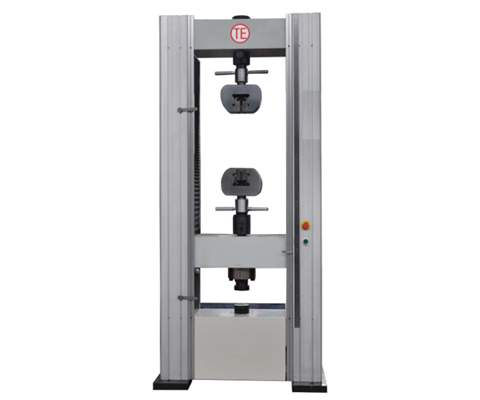

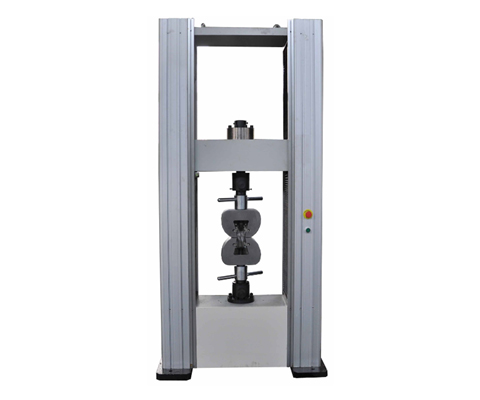

Load Frame
Load Frame
The purpose of design with table type load frame & double columns is to ensure safety, reduce operator fatigue, and provide the highest level of flexibility. Concretely, it features as following:
1. High accuracy:
The preloaded precision ball-screw and servo motor ensure high speed and accuracy of position measurement.
Adoption of high precision load cell for load measurement
2. Safety feature:
The tensile tester stops automatically when the change in the test force exceeds a specified value during operation.
3. Over load and over travel protection;
Over-stroke limiter
The range of the cross-head movement is mechanically limited.
4. Comfortable working area

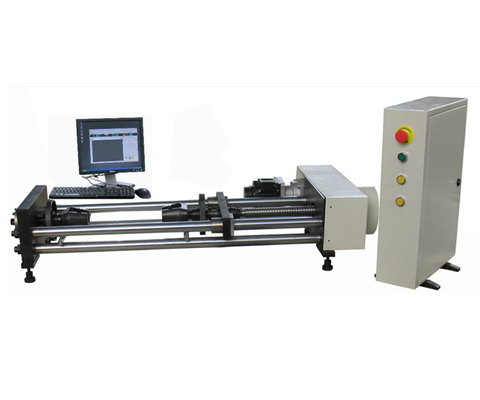

The horizontal load frame makes it easy for attaching and removing jigs.
5. Large space in the working area:
The insides of columns provide wide space for the operator.
Specifications
|
Max. Load (kN)
|
1 - 600
|
|
Effective Measuring Range of Load
|
2 - 100% of F.S.
|
|
Load Accuracy
|
≤±0.5%
|
|
Displacement Resolution (mm)
|
0.01
|
|
Max. Tensile Space
|
customized upon request
|
|
Net Space Between Columns
|
customized upon request
|
|
Test Speed (mm/min)
|
0.1 - 250/500
|
|
Structure
|
center ball screw driven
|
|
Control Mode
|
Close-loop servo and motor control.
|
|
Power
|
380V/220VAC, 50Hz/60Hz
|
|
System Safety Features
|
Emergency stop control, Automatic overload protection
|
|
|
Open-fronted Wedge action tensile grips
|
Wire tensile grips
|
Remark: Other accessories can be supplied according to customer’s application.
